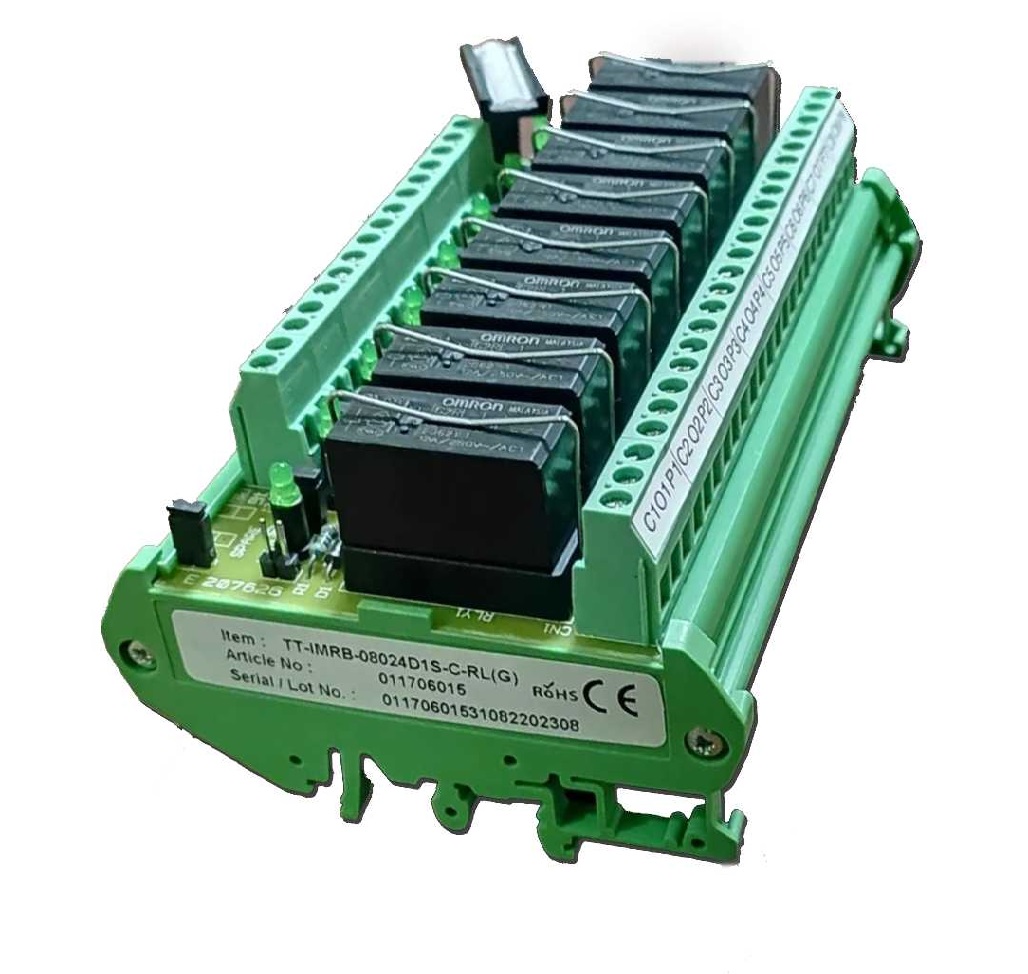

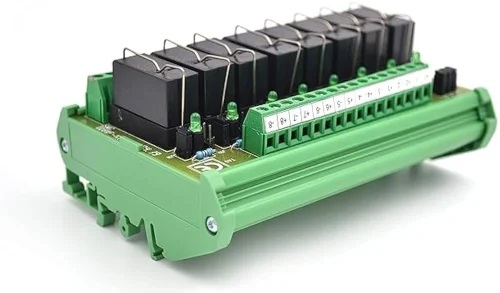

Trinity Touch Relay Card 1c/o 8ch 24V DC
Price:
₹974.40
Trinity Touch Relay Card 1c/o 8ch 24V DC
Customize
1. LED Indicators: Green LEDs for input status per channel. 2. Protection: Freewheeling diode across each relay coil. 3. Looping Options: Jumpers provided for selecting between positive or negative common looping; removing all jumpers allows for independent relay operation. 4. 8 Channel Output: Each channel equipped with a single change-over (1C/O) relay. 5. Relay Type: Electromechanical relays for reliable switching. 6. Compact Design: DIN Rail mountable module suitable for control panels. 7. Screw Terminals: Secure and easy wiring using screw-type terminals. 8. Labeling: Clear channel labeling for ease of wiring and maintenance. 9. PCB Quality: Industrial grade PCB with robust soldering and track thickness. 10. Opto-Isolated Inputs: Ensures electrical isolation between control signal and relay coil.
1. Coil Voltage: 24 V DC 2. Input Current: 21.8 mA per relay 3. Coil Resistance: 1100 Ω 4. Contact Configuration: 1PDT (Single Pole Double Throw) 5. Rated Load (Resistive): 10A at 250V AC / 30V DC 6. Rated Load (Inductive): 5A at 30V DC / 7.5A at 250V AC 7. Contact Resistance: ≤ 30 mΩ 8. Relay Brand: Omron (Pluggable with base) 9. Mounting Type: DIN 35 rail 10. Operating Temperature: 0°C to 50°C 11. Storage Temperature: -10°C to 60°C 12. Relative Humidity: 5% to 95% RH 13. Nominal Current Capacity: 24A per contact
