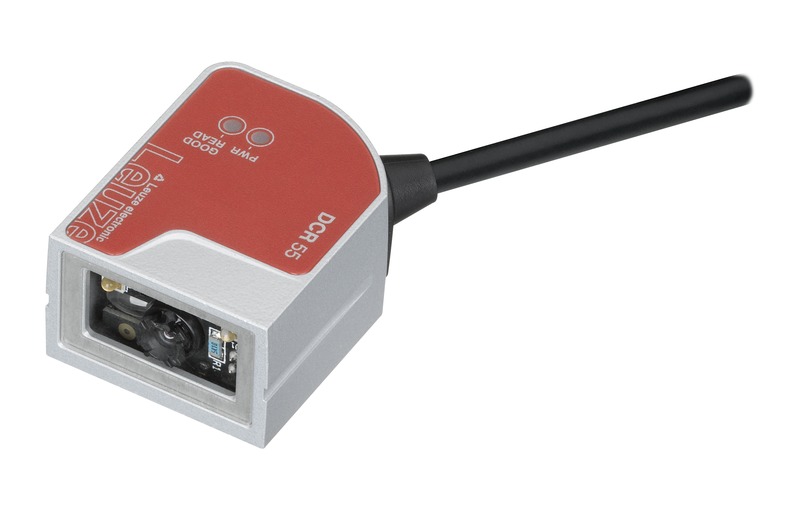

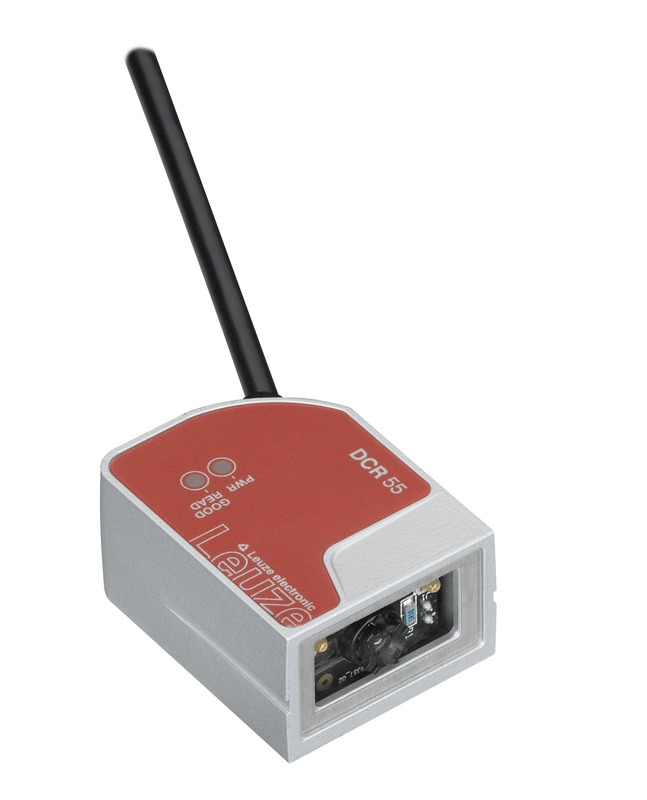

Stationary 2D Code Reader DCR55M2/R2-150-M12.8
Non-returnable
Price:
₹44,400.00
Out of stock
Stationary 2D Code Reader DCR55M2/R2-150-M12.8
Customize
1. 2D Code Reader: Reads 1D/2D codes 2. RS-232 Interface: Serial communication 3. 150 mm Range: Fixed focus 4. Compact Size: Easy mounting 5. M12 Connector: Secure connection 6. LED Illumination: Built-in lighting 7. IP65 Protection: Dust/water resistant 8. Fast Decoding: Quick data read 9. Wide Code Support: QR, Data Matrix, etc. 10. Industrial Use: Rugged design
1. Series: DCR 55 2. Imager Type: CMOS (Rolling Shutter) 3. Reading Capabilities: 1D and 2D codes, including 2/5 Interleaved, Code 39, Code 128, Data Matrix, QR Code, and more 4. Reading Distance: 30 to 425 mm 5. Camera Resolution: 1,280 px (horizontal) x 960 px (vertical) 6. Module Size: 0.127 to 0.528 mm 7. Supply Voltage: 4.75 to 5.25 V DC 8. Maximum Current Consumption: 425 mA 9. Digital Inputs/Outputs: 1 input (Reading gate function), 1 output (Transistor, NPN) 10. Connection: 150 mm PUR cable with 8-pin M12 male connector (A-coded) 11. Housing Material: Diecast aluminum with plastic lens cover 12. Protection Class: IP54 13. Operating Temperature Range: 0 to 50 °C 14. Storage Temperature Range: -20 to 60 °C 15. Relative Humidity: 10% to 90% (non-condensing)
