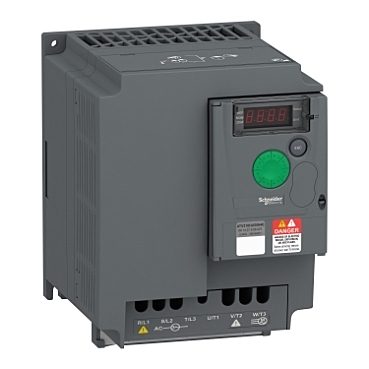

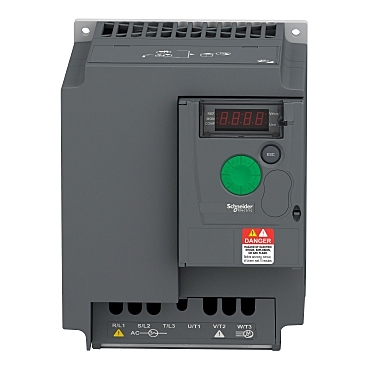

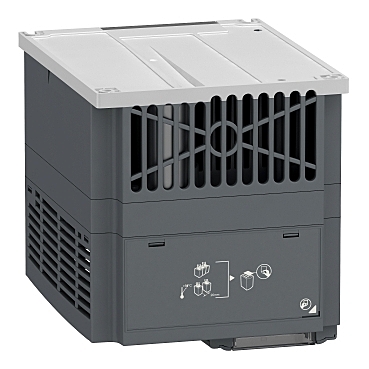

SCHNEIDER VFD ATV310HU55N4E 5.5KW 7.5HP
Non-returnable
Price:
₹38,136.00
Out of stock
SCHNEIDER VFD ATV310HU55N4E 5.5KW 7.5HP
Customize
1. Control Profiles: Supports standard, performance, and pump/fan profiles. 2. Torque Management: Includes boost torque and motor slip compensation. 3. Noise Reduction: Features motor noise reduction and adjustable switching frequency (2–12 kHz). 4. DC Injection Braking: Provides braking to standstill by DC injection in under 30 seconds. 5. Speed Control: Offers frequency, preset speeds, and jog operation. 6. Ramp Management: Features S ramp, U ramp, and ramp switching for acceleration/deceleration. 7. Input/Output Configuration: Allows channel configuration in separate or combined modes. 8. Local Control: Provides force local control and storage of customer parameter settings. 9. System Protection: Detects underload and overload conditions to protect the installation. 10. Modbus Support: Equipped with a 2-wire RS-485 interface for Modbus communication, with an RJ45 connector on the front face. 11. Built-in PID control.
1. Series: Altivar Easy 310 (ATV310) 2. Model: ATV310HU55N4E 3. Power Rating: Heavy Duty: 5.5 kW (7.5 HP) Normal Duty: 7.5 kW (10 HP) 4. Input Voltage: 3-phase, 380–460 V AC 5. Output Frequency: 0.5 to 400 Hz 6. Maximum Output Current: Heavy Duty: 18.9 A for 60 seconds Normal Duty: 17.6 A for 60 seconds 7. Switching Frequency: Adjustable from 2 to 12 kHz 8. Control and Interface: Analog Inputs: 1 Analog Outputs: 1 Digital Inputs: 4 Digital Outputs: 3 Communication Interface: RS-485 9. Cooling Method: Integrated fan 10. Protection Rating: IP20
