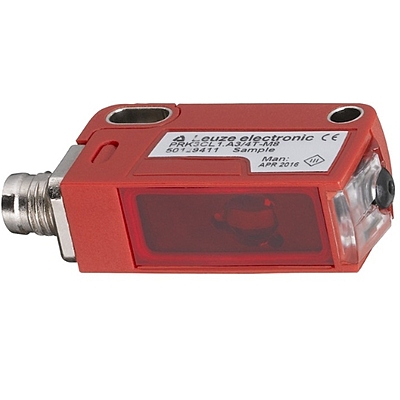

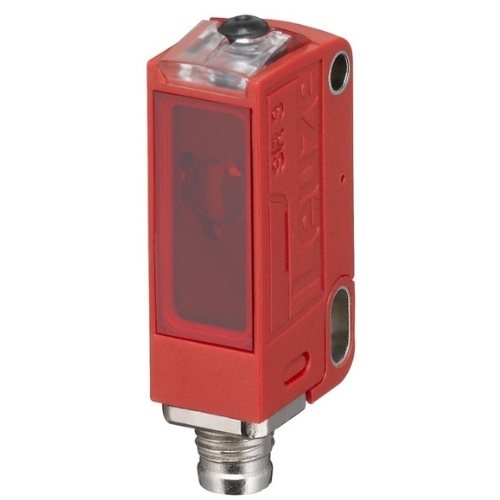

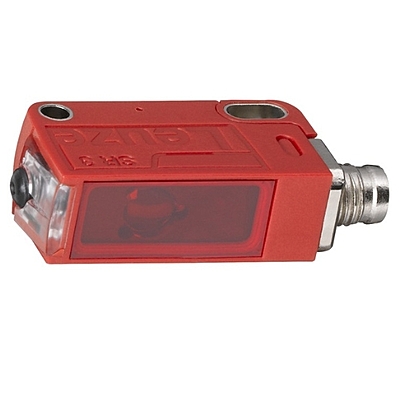

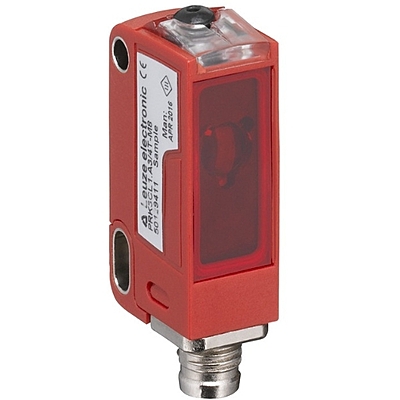

Polarized retro-reflective photoelectric sensor PRK3C.A3/4T-M8
Price:
₹5,200.00

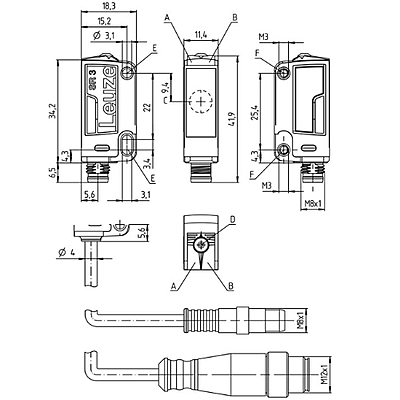

Optical data Operating range 0 ... 4 m, With reflector TK(S) 100x100 Operating range limit0 ... 5 m, With reflector TK(S) 100x100 Light source LED, Red Electrical data Protective circuit Polarity reversal protection, Short circuit protected Performance data Supply voltage UB 10 ... 30 V, DC, Incl. residual ripple Residual ripple0 ... 15 %, From UB Open-circuit current0 ... 15 mA Inputs Number of teach inputs1 Piece(s) Outputs Number of digital switching outputs1 Piece(s) Switching output 1 Switching element Transistor, PNP Switching principle Light switching Timing Switching frequency1,500 Hz Response time0.33 ms Connection Connection 1 Function Voltage supply, Signal IN, Signal OUT Type of connection Connector Thread sizeM8 Material Metal No. of pins4 -pin Mechanical data Dimension (W x H x L)11.4 mm x 34.2 mm x 18.3 mm Housing material Plastic, PC-ABS Lens cover material Plastic / PMMA Net weight10 g Type of fastening Via optional mounting device, Through-hole mounting Compatibility of materials ECOLAB Operation and display Operational controls Teach button
Customize
1.Polarized Retro-Reflective Technology Detects objects reliably, even with shiny or reflective surfaces. Uses a polarization filter to ignore direct reflections from shiny backgrounds. 2.Long Sensing Range Up to 5 meters with a suitable reflector. 3.Red LED Light Source Visible red light for easy alignment and setup. 4.Compact & Rugged Design Small form factor for space-constrained installations. Durable plastic housing suitable for industrial environments. 5.High Protection Class IP67 rated for dust-tight and waterproof protection. 6.Fast Response Time Suitable for high-speed applications requiring quick object detection. 7.Easy Installation M8 4-pin connector for quick and secure electrical connection. 8.Reliable Switching PNP transistor output suitable for most PLC and control system interfaces. 9.LED Indicators Status and signal indicators for easy troubleshooting and operation monitoring. 10.Operating Voltage Wide voltage range (10–30 V DC) compatible with various control systems.
1.Operating Range: 0 to 5 meters 2.Supply Voltage: 10–30 V DC 3.Connection Type: M8, 4-pin connector 4.Output Type: Transistor, PNP 5.Light Source: Red LED 6.Sensing Method: Polarized retro-reflective 7.Housing Material: Plastic 8.Protection Class: IP67
