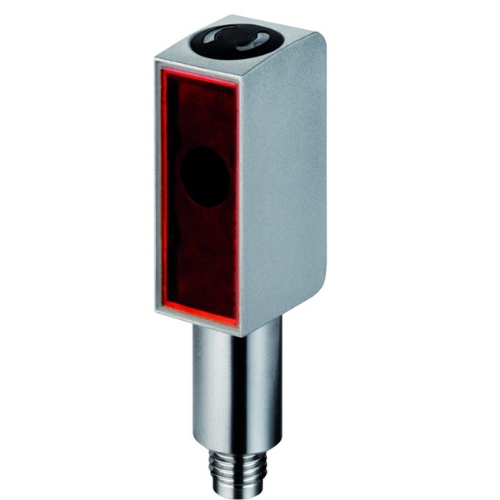

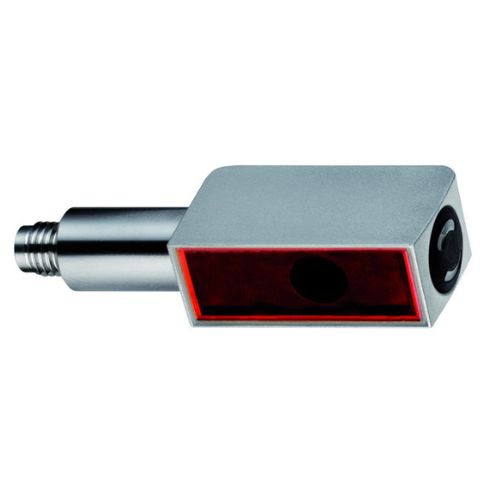

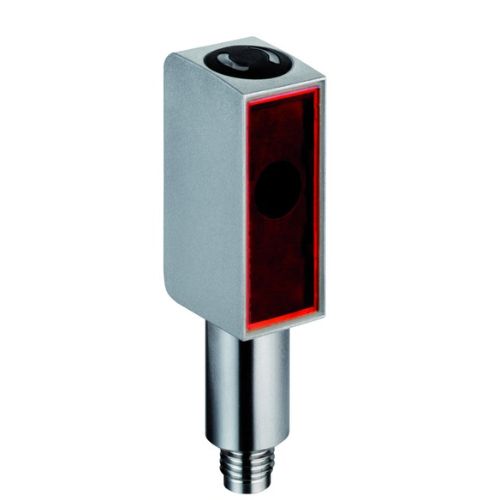

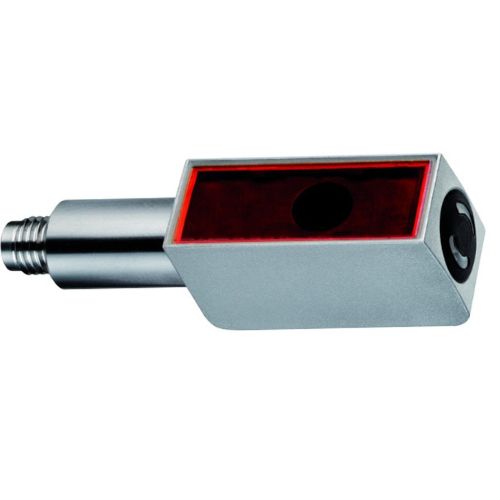

Leuze HRTL 53/66-S8 - Diffuse sensor with background suppression
Price:
₹13,488.00
Operating range, white 90% 0.015 ... 0.4 m Operating range, gray 18% 0.015 ... 0.25 m Operating range, black 6% 0.015 ... 0.17 m Operating range limit 0.015 ... 0.4 m Light source Laser, Red Laser class1, IEC/EN 60825-1:2007 Light spot size [at sensor distance]1 mm Supply voltage UB 10 ... 30 V, DC Outputs Number of digital switching outputs 2 Piece(s) Switching output 1 Switching element Transistor, Push-pull Switching principle Light switching (PNP)/dark switching (NPN) Switching output 2 Switching element Transistor, Push-pull Switching principle Dark switching (PNP)/light switching (NPN) Switching frequency 2,000 Hz Response time 0.25 ms Connection 1 Function Voltage supply, Signal OUT Type of connection Connector Thread size M8 Material Stainless steel No. of pins 4 -pin Operational controls Multiturn potentiometer
Product Details
Operating range, white 90% 0.015 ... 0.4 m Operating range, gray 18% 0.015 ... 0.25 m Operating range, black 6% 0.015 ... 0.17 m Operating range limit 0.015 ... 0.4 m Light source Laser, Red Laser class1, IEC/EN 60825-1:2007 Light spot size [at sensor distance]1 mm Supply voltage UB 10 ... 30 V, DC Outputs Number of digital switching outputs 2 Piece(s) Switching output 1 Switching element Transistor, Push-pull Switching principle Light switching (PNP)/dark switching (NPN) Switching output 2 Switching element Transistor, Push-pull Switching principle Dark switching (PNP)/light switching (NPN) Switching frequency 2,000 Hz Response time 0.25 ms Connection 1 Function Voltage supply, Signal OUT Type of connection Connector Thread size M8 Material Stainless steel No. of pins 4 -pin Operational controls Multiturn potentiometer
