Leuze EI 1058-S08x20C-1024T-020R Incremental Encoder ,TTL Output , 2 mtr Prewired cable radial type
Non-returnable
Price:
₹4,350.00 ₹6,155.00 (30% Off)

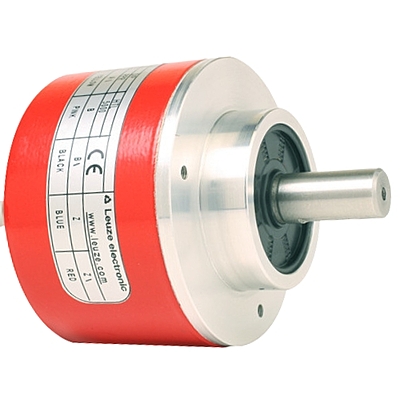

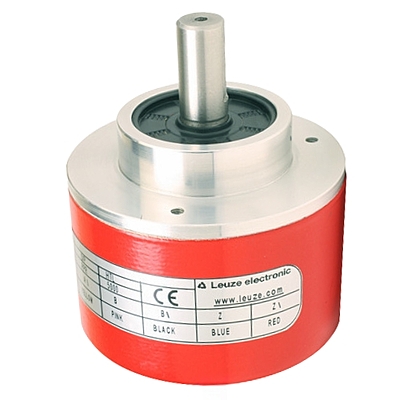

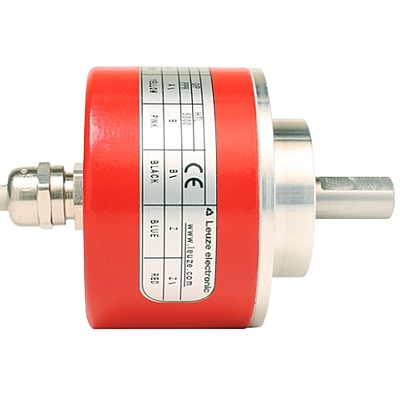

Leuze EI 1058-S08x20C-1024T-020R Incremental Encoder ,58mm dia ,8mm shaft 1024PPR ,TTL Output , 2 mtr Prewired cable radial type
Product Details
1. High Resolution: 1024 pulses per revolution (PPR) for precise motion detection. 2. High-Speed Performance: Supports up to 6,000 rpm and 300 kHz switching frequency. 3. Rugged Design: Aluminum housing with IP65 protection, ensuring durability in harsh environments. 4. Reliable Output: TTL output with short-circuit protection for enhanced safety. 5. Versatile Mounting: Clamping flange with an 8mm shaft diameter for secure installation. 6. Long Cable Connection: Comes with a 2-meter PVC cable (8-wire) for flexible wiring options. 7. Wide Operating Temperature: Works efficiently in extreme conditions from -40°C to +85°C.
Leuze EI 1058-S08x20C-1024T-020R
Quantity:
Share:
Product Information
Key Features
| Feature | Specification |
|---|---|
| Model | EI 1058-S08x20C-1024T-020R |
| Series | EI 1000 Incremental Rotary Encoders |
| Resolution | 1,024 PPR |
| Max. Speed | 6,000 rpm |
| Switching Frequency | 300 kHz |
| Interface | TTL (with short-circuit protection) |
| Supply Voltage | 5–28 V DC |
| Current Consumption | ≤150 mA |
| Housing | Aluminum; IP65 rated |
| Mounting / Shaft | Clamping flange; 8 mm shaft diameter |
| Cable Configuration | 2 m pre-wired radial cable, gray PVC, 8-wire (0.14 mm²) |
| Environment | Industrial-grade ruggedness — dust and moisture resistant |
