Leuze BTU 320M-D12 Mounting System - 50132150
Non-returnable
Price:
₹2,437.00 ₹3,900.00 (38% Off)
- Suitable for stationary 2D-code readers
- Compatible with Leuze DCR 200i series
- Designed for 12 mm rod mounting
- Adjustable mounting system
- Clampable design for secure positioning
- 360° turnable construction
- Made from aluminum and galvanized steel
- Lightweight industrial metal body
- Includes 4 x M4 x 6 screws
- Ideal for barcode reader and sensor mounting applications
Product Details
Leuze BTU 320M-D12 is a durable metal mounting system for stationary 2D-code readers, designed for 12 mm rod mounting with adjustable, clampable, and 360° turnable installation.
Quantity:
Share:
Product Information
Key Features

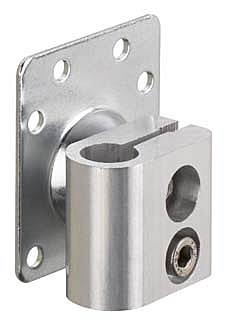

The Leuze BTU 320M-D12 mounting system is a robust industrial mounting accessory designed for stationary 2D-code readers. It is suitable for the DCR 200i series and supports installation on a 12 mm rod. The mounting design is adjustable, clampable, and 360° turnable, allowing flexible alignment during installation. Manufactured using aluminum and galvanized steel, this mounting system offers reliable mechanical strength with a lightweight design. The package includes 4 x M4 x 6 screws for mounting.

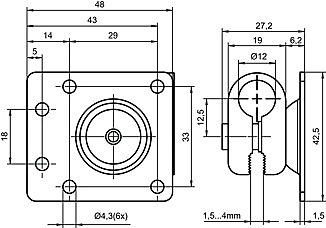

Specifications
- Rail Type:Mounting Bracket
- Material: Galvanized Steel
- Surface Processing:Galvanized
- Length (mm):48
- Width (mm):43
- Height (mm):42.5
- Thickness (mm): 1.5
- Hole Type:Round Hole
- Hole Pitch (mm):29
- Mounting Method:12 mm Rod Mount
