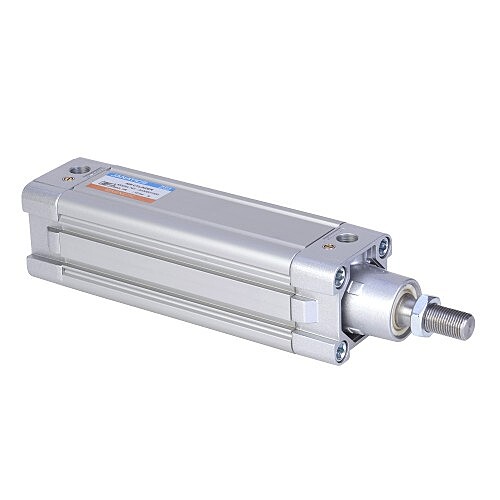

Janatics A23050040O 50x40mm Basic Magnetic Cylinder
Price:
₹3,583.00 ₹7,166.00 (50% Off)
Product Details
Adjustable cushioning at both ends with elastomer pads Wide varieties of mountings as per ISO 15552 / VDMA 24562 standards Magnetic and Non magnetic version Aluminium profile (square) cylinder barrel Magnetic sensor common for all sizes (Refer Magnetic sensor catalogue) Optional - High temperature (Viton seals) 150°C max.** Optional - Non corrosive Stainless steel piston rod and piston rod lock nut (SS 304)
Quantity:
Share:
Product Information
Key Features
Type: Basic cylinder, double acting
Magnetic piston: Sensor-ready for position detection
Bore × Stroke:50 mm × 40 mm
Cushioning: Adjustable cushioning (as per series design)
Built for consistent performance in factory environments

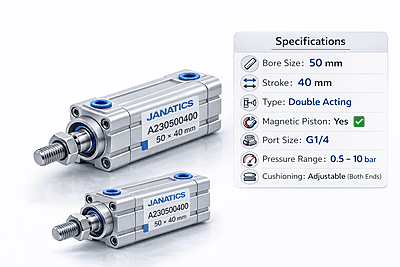

Specifications
- Cylinder Type:Standard (Tie-Rod)
- Acting Type:Double Acting
- Cushioning:Adjustable Cushion
- Magnet for Sensor:Yes (Magnetic Piston)
- Bore Size (mm): 50
- Stroke Length (mm):40
- Mounting Style:Basic
- Port Size / Thread:G1/4
- Operating Pressure (bar):0.5–10 bar
- Operating Temperature (°C):-10 to 60
