HT5.1/4X-M8 - Diffuse sensor with background suppression
Price:
₹2,880.00

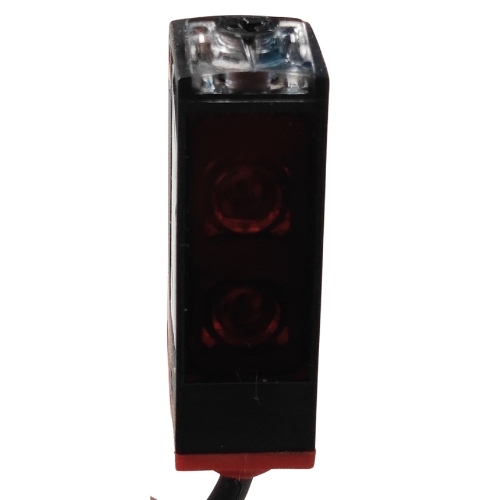

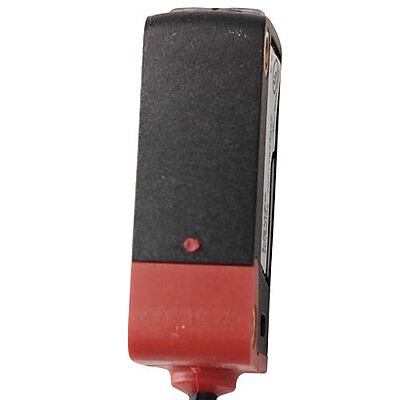

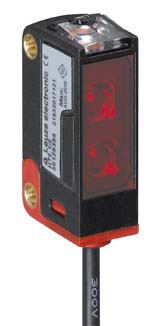

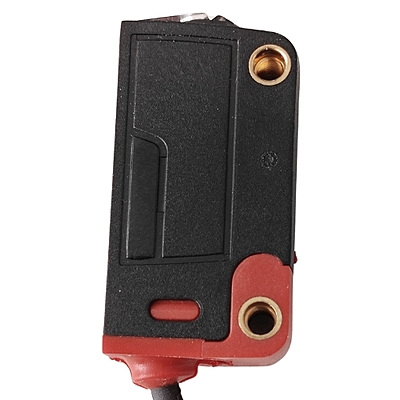

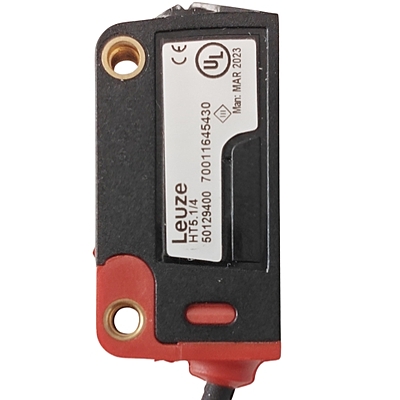

Leuze HT5.1/4X‑M8 is a compact cubic plastic diffuse sensor with background suppression, featuring a red LED, PNP transistor output, and M8 connector. It has an adjustable sensing range of 5–400 mm, 1,000 Hz switching frequency (0.5 ms response), operates on 10–30 V DC, and boasts IP67 protection for industrial use.
Product Details
1. Housing: Robust and suitable for harsh environments. 2. Protection Rating: IP67, providing dust-tight and water-resistant protection. 3. Connector: M8 connector for easy system integration. 4. Size: Compact design for space-constrained installations. 5. Sensitivity: Adjustable sensitivity for versatile application needs. 6. Temperature Range: Operates within a wide range, typically between -25°C and +55°C. 7. Indication LED: Green and red LED indicators to show the operational status. 8. Short circuit and Reverse polarity protection available.
1. Supply Voltage: 10 to 30 V DC 2. Current Consumption: Typically ≤ 15 mA 3. Output Type: PNP (sourcing) 4. Output Current: Max. 200 mA 5. Switching Frequency: Typically 1 kHz 6. Response Time: ≤ 1 ms 7. Operating range limit: 0.005 ... 0.4 m 8. Adjustment range: 15 ... 400 mm 9. Beam path: Focused 10. Light source: LED, Red
