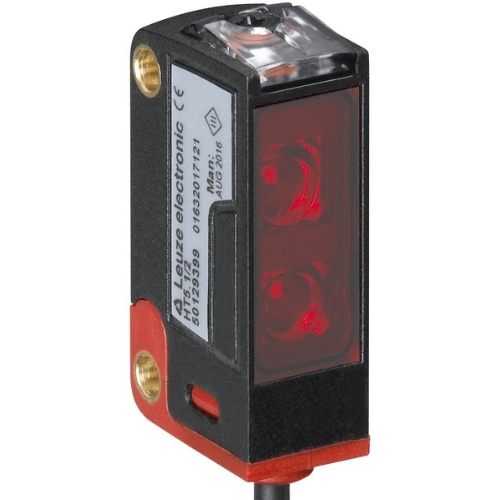

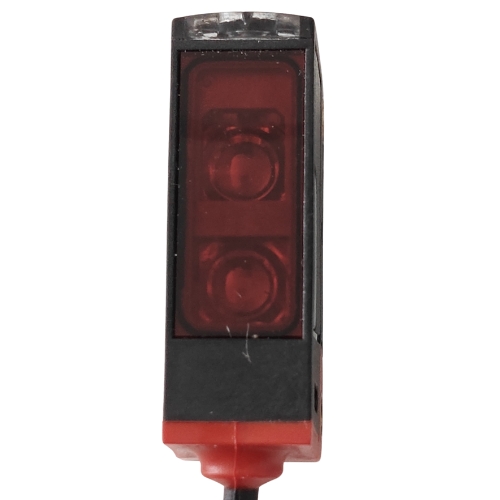

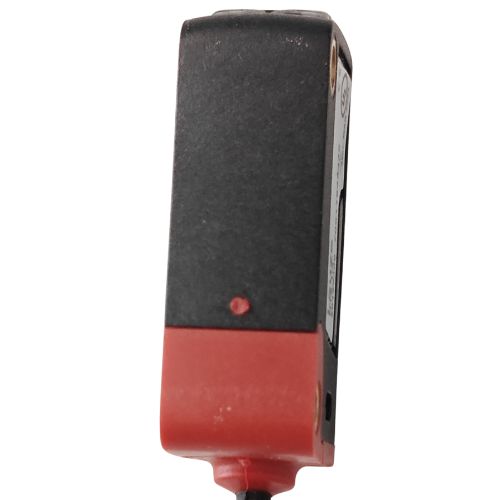

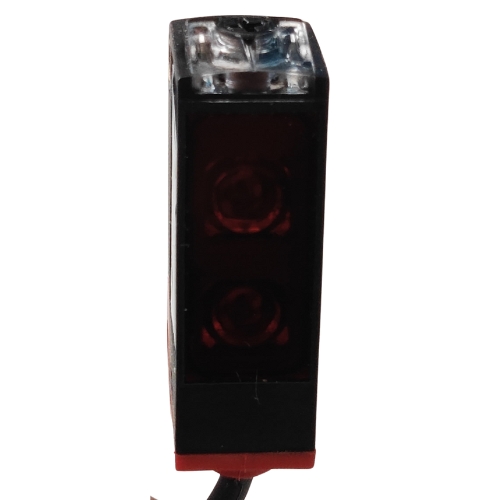

HT5.1/2 Diffuse sensor with background suppression
Price:
₹4,000.00
Out of stock
HT5.1/2 Diffuse sensor with background suppression
Customize
1. Adjustable Background Suppression: Allows for precise detection of objects at varying distances while ignoring backgrounds. 2. Robust Design: Suitable for use in harsh industrial environments due to its high protection rating and durable plastic housing. 3. High Switching Frequency and Fast Response Time: Ensures accurate detection of fast-moving objects. 4. User-Friendly Adjustment: Equipped with a multiturn potentiometer for easy range adjustment.
1. Operating Principle: Diffuse reflection with background suppression 2. Series: 5 3. Light Source: Red LED (wavelength: 645 nm) 4. Light Spot Geometry: Round 5. Beam Path: Focused 6. Focal Distance: 200 mm 7. Adjustment Range: 15 – 400 mm 8. Operating Range: White (90% reflectivity): 0.005 – 0.4 m Gray (18% reflectivity): 0.01 – 0.3 m Black (6% reflectivity): 0.015 – 0.2 m 9. Black-White Error: Less than 15% up to 200 mm 10. Switching Frequency: 1,000 Hz 11. Response Time: 0.5 ms 12. Supply Voltage: 10 – 30 V DC (including residual ripple) 13. Current Consumption: 0 – 15 mA 14. Output: 1 NPN digital switching output (light switching) 15. Connection: 2,000 mm cable with 3-wire configuration 16. Protection Class: IP67 17. Operating Temperature Range: -40°C to +60°C 18. Storage Temperature Range: -40°C to +70°C
