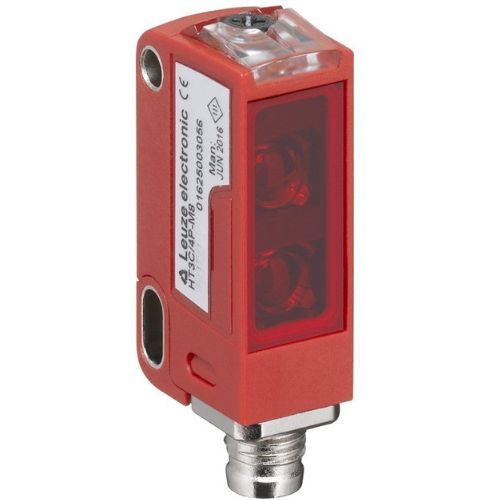

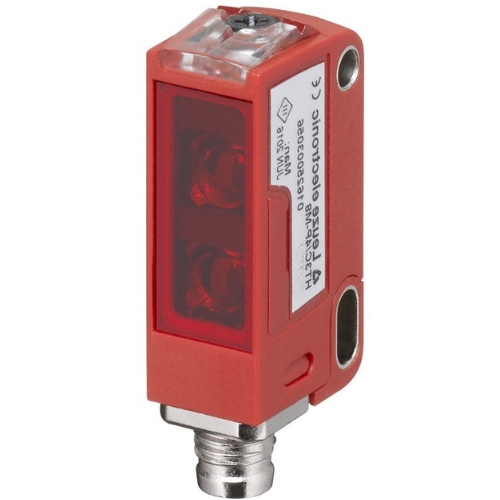

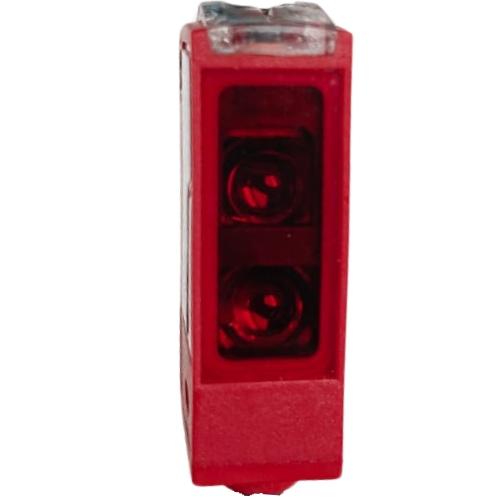

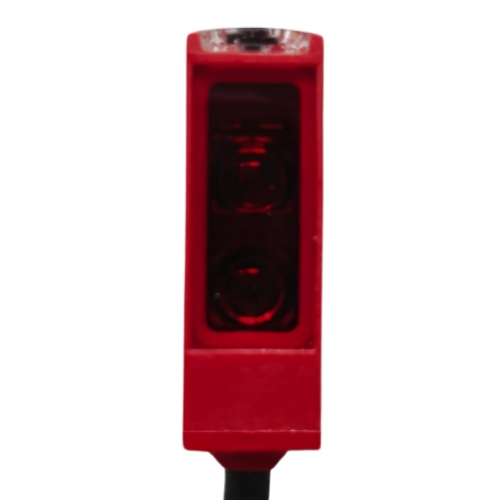

HT3C/2N-M8 - Diffuse sensor with background suppression
Price:
₹4,500.00
Out of stock
HT3C/2N-M8 - Diffuse sensor with background suppression
Customize
1. Adjustable Background Suppression: Allows for precise detection of objects at varying distances while ignoring backgrounds. 2. Robust Design: Suitable for use in harsh industrial environments due to its high protection ratings and durable metal housing. 3. High Switching Frequency and Fast Response Time: Ensures accurate detection of fast-moving objects. 4. Switching Outputs: Output 1: Transistor, PNP, Light switching Output 2: Transistor, PNP, Dark switching
1. Operating Principle: Diffuse reflection with background suppression 2. Series: 3C 3. Light Source: Red LED (wavelength: 633 nm) 4. Light Spot Geometry: Square 5. Beam Path: Focused 6. Operating Range: White (90% reflectivity): 0.005 – 0.45 m Gray (18% reflectivity): 0.01 – 0.34 m Black (6% reflectivity): 0.015 – 0.22 m 7. Adjustment Range: 15 – 450 mm 8. Black-White Error: Less than 10% up to 220 mm 9. Switching Frequency: 1000 Hz 10. Response Time: 0.5 ms 11. Outputs: 2 NPN digital switching outputs 12. Supply Voltage: 10 – 30 V DC 13. Current Consumption: 0 – 15 mA 14. Connector: 4-pin M8 male connector 15. Protection Ratings: IP67 and IP69K 16. Protective Circuits: Polarity reversal protection and short-circuit protection
