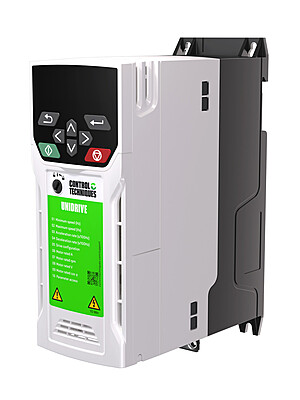

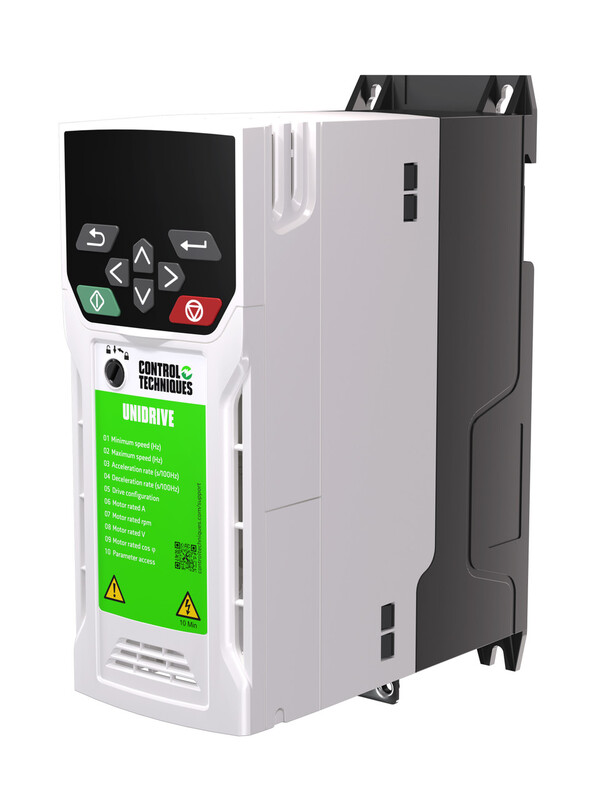

Control Technique- VFD M200 series 3 Ph. 0.75kW

Features / Functions1.

Supports both asynchronous (induction) and permanent magnet motors.

2. Open-loop vector control and V/f control for precise motor control.

3. Designed with energy-saving features to optimize motor performance.

4. Standard Modbus RTU communication for integration into industrial networks.

5. Includes overload, overvoltage, under voltage, short circuit, and over-temperature protection to ensure safe operation.

6. Simple keypad for programming and monitoring, with pre-configured macros for ease of use.

Specifications

1. Input Voltage: 380-480V AC, Three-phase

2. Input Frequency: 50/60 Hz ± 5%

3. Output Voltage: 0 to input voltage

4. Output Power: 0.75 KW (1 HP)

5. Rated Output Current: ~2.3 A

6. Speed Control Range: 1:100 (in vector mode)

7. Speed Accuracy: ±0.5% of maximum speed

8. Starting Torque: Up to 200% at low speeds in vector mode
