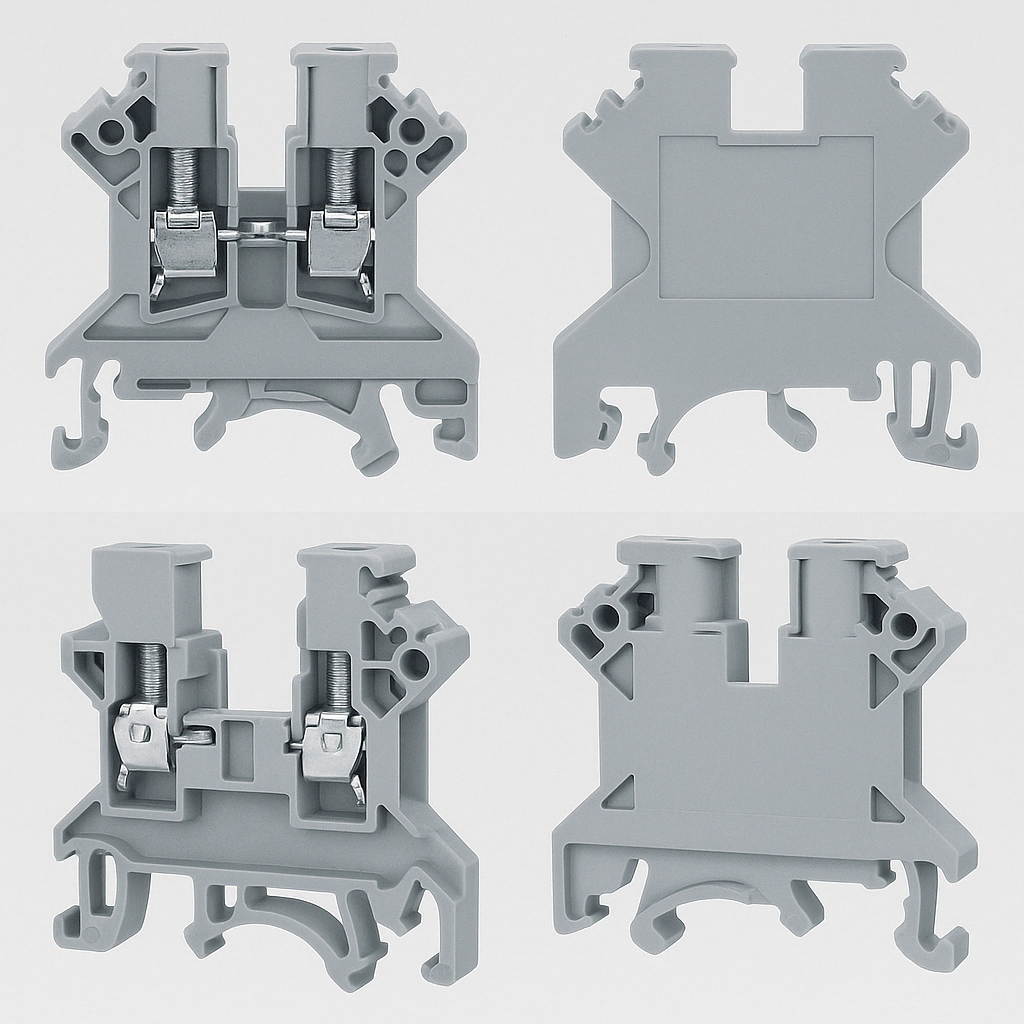

Connectwell- CTS 2.5UN 2.5 sq.mm Feed Through Terminal Block in Grey colour
Non-returnable
Price:
₹6.72
Connectwell- CTS 2.5UN 2.5 sq.mm Feed Through Terminal Block in Grey colour
Customize
1. Flexible Foot Design: Facilitates easy mounting and dismounting from DIN rails using a screwdriver. 2. Marker Holding Recesses: Accommodates marking tags for clear circuit identification. 3. Cross-Connection Capability: Achieved using shorting links, sleeves, and screws.
1. Rated Voltage: 1000 V 2. Rated Current: 24 A 3. Tightening Torque: 0.4 Nm 4. Housing Material: Polyamide 5. Wire Entry Orientation: Side Entry 6. Mounting Compatibility: DIN 32, DIN 35, DIN 35-15 rails 7. Screw Size: M2.5 8. Rated Surge Voltage: 8 kV 9. Pollution Degree: 3 10. Solid Conductor Cross Section: 0.2 mm² to 4 mm²
