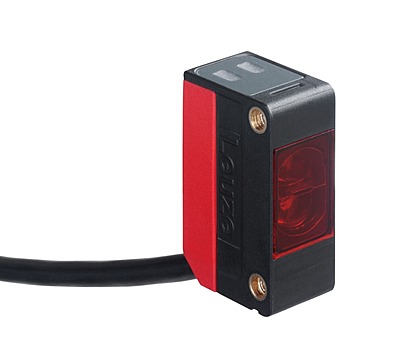

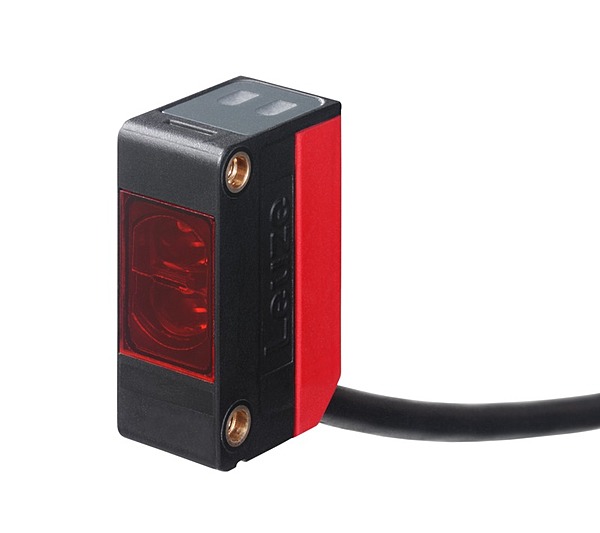

Leuze PRK5/4P Polarized Retro-Reflective Photoelectric Sensor, PNP, 10–30 V DC, 2 m Cable
Polarized retro-reflective photoelectric sensor for stable object detection.
Guaranteed operating range: 0.02 to 4.5 mwith reflector TK(S) 100x100.
Typical operating range limit up to 6 m.
10 to 30 V DCoperating voltage.
2 PNP transistor outputs: one light switching and one dark switching.
Fast 500 Hz switching frequencyand 1 ms response time.
2 m PUR cable, 4-wire connection.

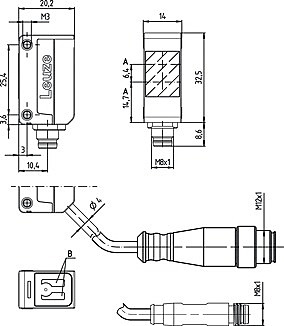

Compact housing: 14 x 32.5 x 20.2 mm.
Rugged IP67protection, suitable for industrial environments.
Product Details
Key Features
The Leuze PRK5/4Pis a compact polarized retro-reflective photoelectric sensorbuilt for dependable detection in automated machinery, conveyors, packaging lines, and general industrial sensing applications. Its red LED light source, pulsed signal transmission, and polarization-based operating principle help deliver reliable sensing performance in demanding environments.
This sensor supports a 10–30 V DCsupply and provides two PNP digital switching outputs, including light switchingand dark switching, making it easier to integrate into a variety of control systems. With a 500 Hz switching frequency, 1 ms response time, IP67 protection, and a durable PUR-sheathed 2 m cable, it fits well in compact and rugged automation setups.
Specifications
- Sensor Type:Photoelectric Sensor
- Detection Method: Retro Reflective
- Sensing Distance: 5 m
- Response Time: 1 ms
- Output Type: PNP
- Supply Voltage:10-30 VDC
- Light Source:Red LED
- Connection Type:Pre-wired Cable
- Housing Material: ABS
- Protection Rating: IP67
