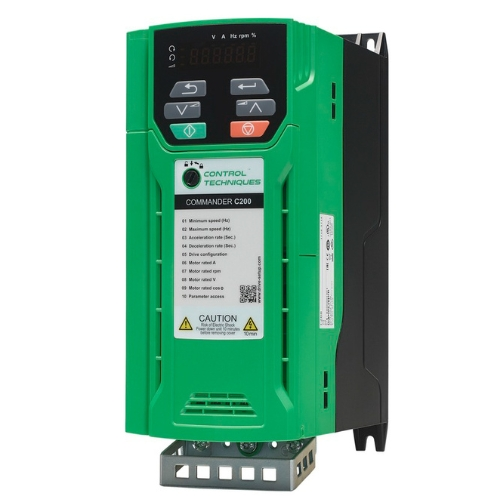

Control Techniques- VFD C200 series 3 Ph. 0.75 kW 380/480 Vac ±10%
SKU - C200-024 00023A
₹14,910.00
₹21,400.00
Customize
Product Full Name :
1. Input Voltage: 380-480V AC, 3-phase 2. Input Frequency: 50-60 Hz 3. Output Power: 0.75 kW (1 HP) 4. Output Voltage: 0 to input voltage (380-480V AC) 5. Switching Frequency: Adjustable from 3 kHz to 16 kHz 6. Overload Capacity: 150% of rated current for 60 seconds 7. Efficiency: ≥ 98% under typical operating conditions 8. Ingress Protection: IP20 rating for indoor use Full Product Name
Description :
Control Techniques C200 is a compact 0.75 kW VFD for 3-phase 380–480 V AC ±10% input. It supports open-loop vector and V/f control, with a speed range of 0–550 Hz, built-in PLC functions, Modbus RTU, and 150% overload for 60s. Ideal for pumps, fans, and general machinery. In stock:
1
