Trinity
Trinity Touch Relay Card 1c/o 8ch 24V DC

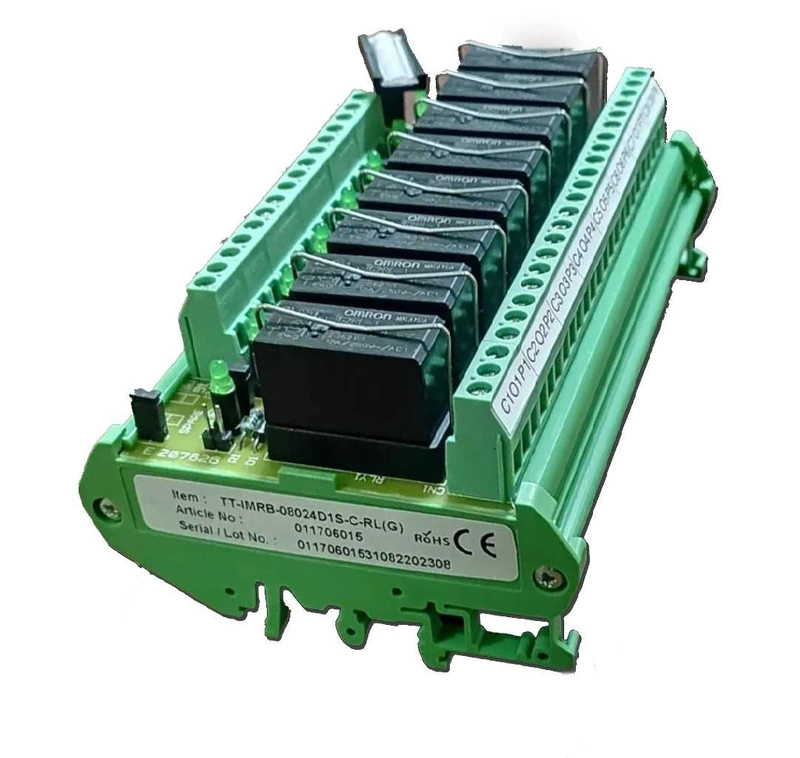

Trinity Touch 8-Channel Relay Card with 1C/O (SPDT) contacts and 24V DC coil voltage is used for signal switching and automation. It features 8 relays, LED indicators, DIN rail mounting, and supports up to 10A load per channel, ideal for industrial control panels.
SKU - TT-IMRB-08024D1S-C-RL(G)
₹974.40
Customize
Product Full Name :
1. Coil Voltage: 24 V DC 2. Input Current: 21.8 mA per relay 3. Coil Resistance: 1100 Ω 4. Contact Configuration: 1PDT (Single Pole Double Throw) 5. Rated Load (Resistive): 10A at 250V AC / 30V DC 6. Rated Load (Inductive): 5A at 30V DC / 7.5A at 250V AC 7. Contact Resistance: ≤ 30 mΩ 8. Relay Brand: Omron (Pluggable with base) 9. Mounting Type: DIN 35 rail 10. Operating Temperature: 0°C to 50°C 11. Storage Temperature: -10°C to 60°C 12. Relative Humidity: 5% to 95% RH 13. Nominal Current Capacity: 24A per contact Full Product Name
Description :
Trinity Touch 8-Channel Relay Card with 1C/O (SPDT) contacts and 24V DC coil voltage is used for signal switching and automation. It features 8 relays, LED indicators, DIN rail mounting, and supports up to 10A load per channel, ideal for industrial control panels. In stock:
7
