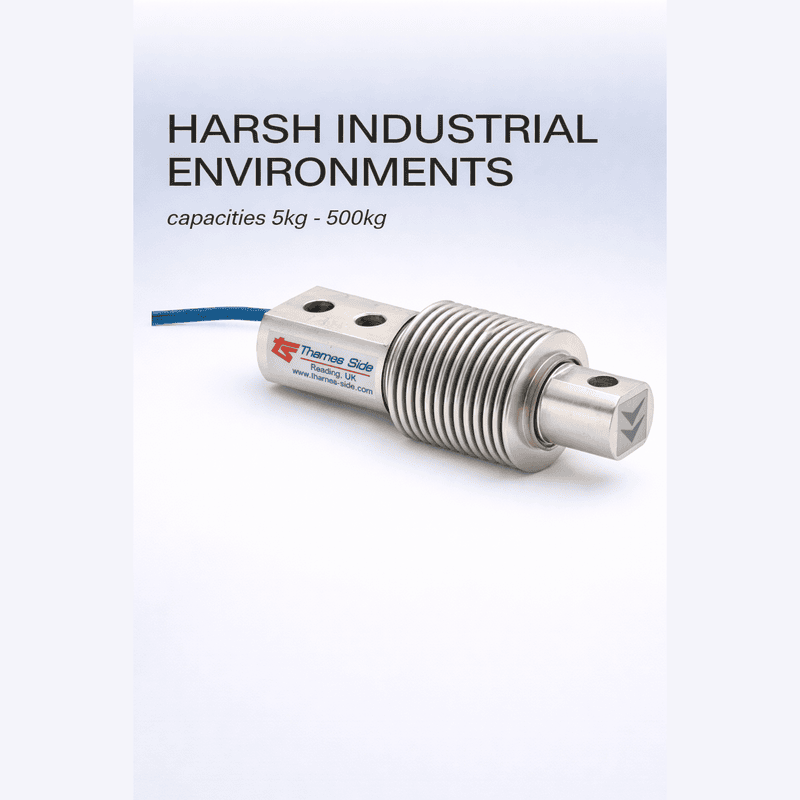

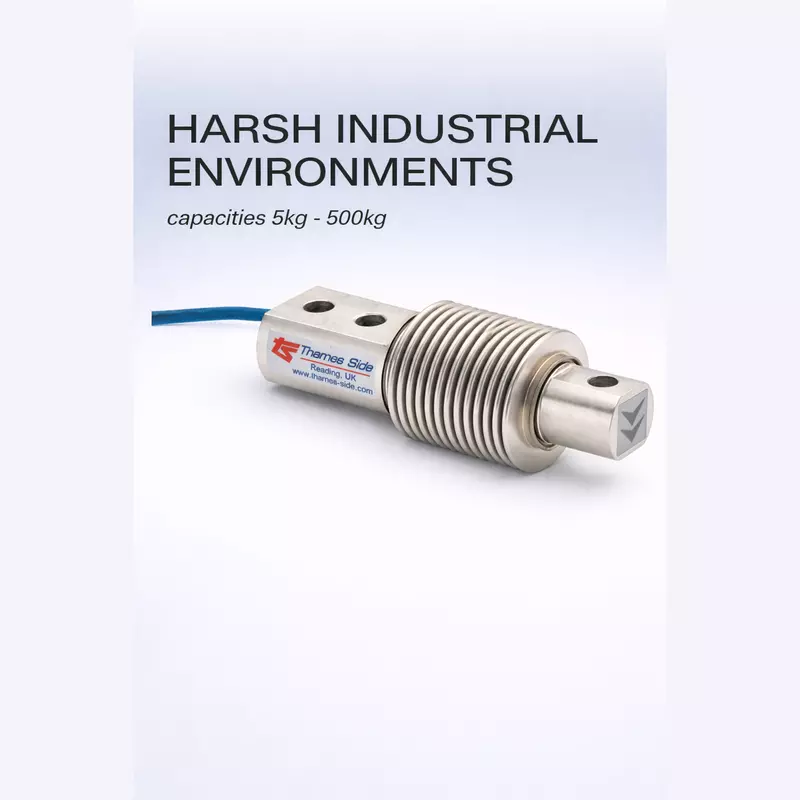

Thames Side T66 Cantilever Beam Load Cell,Stainless Steel, IP68/IP69K

Thames Side T66 Cantilever Beam Load Cell is a high-performance stainless steel load cell designed for reliable weighing in harsh industrial environments. Built with a fully welded and hermetically sealed construction, the T66 offers strong resistance against moisture, dust, washdown, and demanding operating conditions. With IP68 / IP69K protection, it is well suited for applications where durability, hygiene, and long-term stability are critical.

The T66 is commonly used in weighing platforms, bag filling systems, belt weighers, and tank weighing applications across industries such as food processing, chemical, pharmaceutical, and general bulk handling. Its stainless steel construction and robust cable entry design make it a dependable choice for process industries that require consistent performance and reduced maintenance.

This load cell is available in capacities from 5 kg to 500 kg, making it suitable for a wide range of light to medium-duty industrial weighing requirements. OIML C3 approved versions are available across the range, while selected capacities are also offered in C6 versions for applications requiring higher accuracy. The sensor provides a rated output of 2 mV/V, along with stable performance characteristics such as low combined error, low creep, and reliable repeatability.

For electrical connection, the T66 is supplied with a 6-wire screened polyurethane cable as standard, while a 4-wire option is available on request for C3 versions. It operates over a wide environmental range, with a compensated temperature range of -10°C to +40°C and an operating temperature range of -30°C to +70°C. The unit also offers 200% safe overload and 300% ultimate overload, helping protect performance in demanding installation conditions.

The Thames Side T66 is also available with several optional executions for specialized applications. These include ATEX certification for gas and dust zones, high-temperature versions for continuous use up to 150°C, and an optional Parylene coating for aggressive environments where corrosion or acid attack may be a concern. With its combination of rugged design, industrial accuracy, and application flexibility, the T66 is an excellent choice for OEMs, system integrators, and end users looking for a dependable cantilever beam load cell for challenging weighing duties.

• Load Cell Type
  Cantilever Beam
• Material
  Stainless Steel
• IP Protection
  IP68 / IP69K
• Rated Output
  2 mV/V
• Safe Overload
  200% Emax
• Operating Temperature Range
  -30°C to +70°C
• Connection Type
  6 Wire Standard
• Certification
  OIML
