Teknic

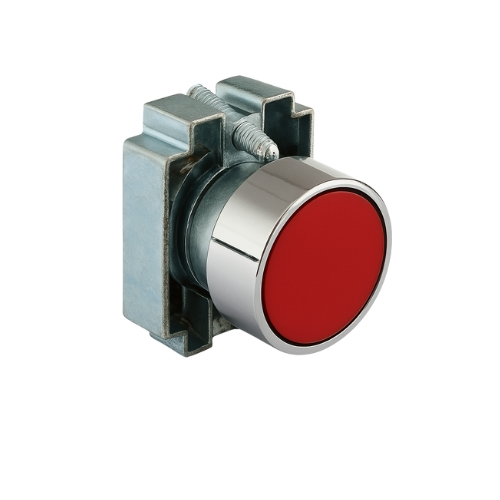

Teknic Push Button Red 2AF4
The Teknic 2AF4 Red Push Button is a durable, panel-mounted switch designed for industrial control panels. Commonly used as a STOP or emergency button, it offers high performance and long life for automation and electrical applications.
Non-returnable
SKU - 2AF4
₹76.00
₹95.00
Customize
Product Full Name :
1. Actuator Type: Flush, round red button 2. Operation: Momentary (spring return) 3. Mounting Size: 22.5 mm diameter 4. Material: Metal operator 5. Illumination: Non-illuminated 6. Contact Configuration: Supports Normally Open (NO) and Normally Closed (NC) contacts (optional) 7. Terminal Type: Screw terminals 8. Certifications: CE, CSA, UL listed Full Product Name
Description :
Teknic Push Button Red 2AF4 In stock:
21
Share:
Product Details
Brand: Teknic
Model: 2AF4
Type: Push Button (Flush Type)
Color: Red
Function: Typically used as a STOP or Emergency Stop button
Mounting Type: Panel Mount (22.5 mm hole diameter)
Contact Block Support: Works with 1NO / 1NC blocks (modular design)
Material: High-quality thermoplastic body
Ingress Protection: IP65 (front side, when properly installed)
Mechanical Life: >1 million operations (approx.)
Application: Industrial control panels, machinery, automation systems
Model: 2AF4
Type: Push Button (Flush Type)
Color: Red
Function: Typically used as a STOP or Emergency Stop button
Mounting Type: Panel Mount (22.5 mm hole diameter)
Contact Block Support: Works with 1NO / 1NC blocks (modular design)
Material: High-quality thermoplastic body
Ingress Protection: IP65 (front side, when properly installed)
Mechanical Life: >1 million operations (approx.)
Application: Industrial control panels, machinery, automation systems
