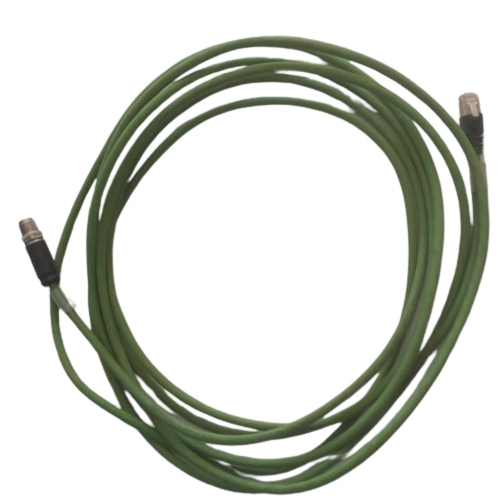

MATRIX VISION mvBlueGEMINI Connection Cable KS-M12-PWR-IO 10.0 is designed for power and digital I/O connection of compatible MATRIX VISION smart cameras.
The cable provides the camera-side M12 connection and prepared individual wires for integration with machine control, PLC, trigger and lighting circuits. The mvBlueGEMINI technical manual identifies the KS-M12-PWR-IO cable with 12 conductors/pins, while the camera I/O supports six configurable digital channels SPSIO0 to SPSIO5 that can be used as inputs, outputs, trigger lines or for controlling flash lights.
The KS-M12-PWR-IO cable family is specified as a shielded connection with M12 connector to prepared wires, suitable for industrial applications and available in lengths up to 20 m. The 10.0 version corresponds to a 10 m cable length.
Technical Details
- Brand: MATRIX VISION
- Product Type: Power & I/O Connection Cable
- Model: KS-M12-PWR-IO 10.0
- Compatible Series: mvBlueGEMINI
- Cable Length: 10 m
- Camera-Side Connection: M12
- Connection Type: M12 to prepared wire ends
- Number of Conductors / Pins: 12
- Cable Type: Shielded
- I/O Support: SPSIO0 to SPSIO5 digital I/O
- Application: Camera power, triggering, digital I/O and flash-light control
- Suitable For: Industrial machine vision and automation systems
