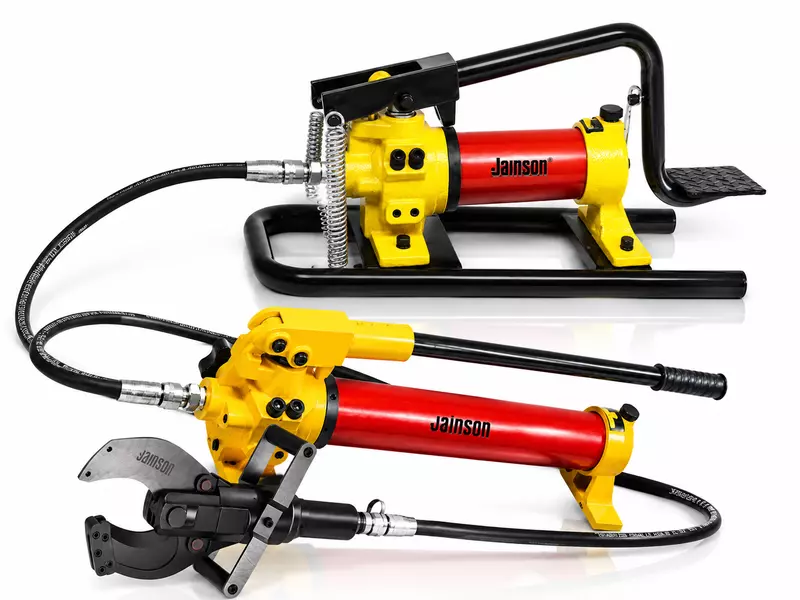

MASTER-85KF Hydraulic Cutting Tool
Jainson MASTER-85KF is a heavy-duty hydraulic cable cutting tool designed for cutting copper, aluminium, ACSR and armoured cables up to 85 mm diameter. It is available in two pump configurations - With Hand Pump and With Foot Pump - and delivers an output force of 8.5 tons for industrial electrical and field applications.
Customize
Product Details
Jainson MASTER-85KF Hydraulic Cable Cutting Tool is designed for heavy-duty cutting of copper, aluminium, ACSR and armoured cables. The tool offers a cutting capacity of up to 85 mm diameter and is available with either a Hand Pump or Foot Pump, allowing the appropriate configuration to be selected according to the application.
The MASTER-85KF features quick-opening jaws to reduce time between cuts. The cutting jaws are manufactured from special steel and are hardened and tempered for durability and long service life. Its hydraulic operation provides reliable cutting performance for electrical installation, cable laying, industrial maintenance and field service applications.
Technical Details
- Brand: Jainson
- Model: MASTER-85KF
- Product Type: Hydraulic Cable Cutting Tool
- Available Variants: With Hand Pump / With Foot Pump
- Cutting Capacity: Up to 85 mm diameter
- Suitable Cable Types: Copper, Aluminium, ACSR and Armoured Cable
- Output Force: 8.5 Tons
- Hydraulic System: Pump-operated
- Rated Pump Pressure: 700 bar
- Jaw Type: Quick-opening
- Jaw Material: Special steel, hardened and tempered
- Operation: Manual hydraulic cutting
Available Variants
MASTER-85KF - With Hand Pump
Manual hand-operated hydraulic pump configuration.
MASTER-85KF - With Foot Pump
Manual foot-operated hydraulic pump configuration with two-stage high- and low-pressure operation.
Suitable Applications: Power cable cutting, electrical installation, cable laying, industrial maintenance, utilities, OEM manufacturing, control-panel projects and field service.
