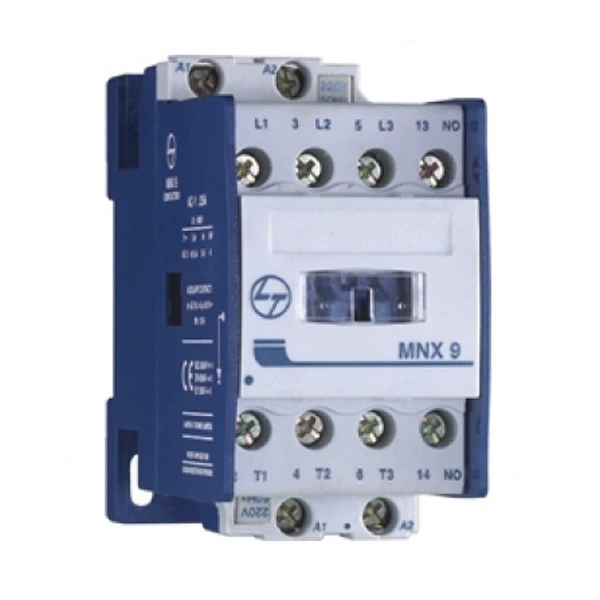

L&T Power Contactor MNX-9 3Pole CS94106 Coil Voltage 240VAC
L&T MNX-9 CS94106 is a 3-pole power contactor rated at 9A AC-3 with a 240VAC coil and 1NO auxiliary contact. Designed for reliable motor switching, starters and industrial control-panel applications.
SKU - CS94106
₹655.00
Customize
Product Full Name :
L&T MNX-9 3 Pole Power Contactor 9A, 240VAC Coil - CS94106 Full Product Name
Description :
L&T MNX-9 Power Contactor is a 3-pole industrial contactor rated at 9A AC-3, designed for motor control, switching and control-panel applications. It features a 240VAC coil and an in-built 1NO auxiliary contact. In stock:
2
Share:
Product Details
L&T MNX-9 3 Pole Power Contactor CS94106 is designed for reliable switching and control of motors and other electrical loads in industrial applications. The MNX-9 contactor provides a 9A AC-3 operational current rating at 415VAC, corresponding to approximately 4 kW motor duty at 415V. It uses a 240VAC operating coil and incorporates 1 normally-open auxiliary contact for control and interlocking functions.
The MNX range is intended for motor feeders and industrial control systems and is designed to operate reliably under demanding environmental conditions.
Technical Details
- Brand: L&T / Lauritz Knudsen
- Series: MNX
- Model: MNX-9
- Catalog No.: CS94106
- Product Type: Power Contactor
- Number of Poles: 3 Pole
- Rated Operational Current (AC-3): 9A
- Rated Operational Voltage: 415VAC
- Rated Motor Power: 4 kW at 415V
- Coil Voltage: 240VAC
- Operating Frequency: 50/60 Hz
- Auxiliary Contact: 1NO
- Rated Insulation Voltage: 690VAC
- Rated Impulse Withstand Voltage: 8 kV
- Pick-up VA Consumption: 68 VA
- Hold-on VA Consumption: 11 VA
- Protection Rating: IP20
- Operating Temperature: -20°C to +55°C
- Mechanical Life: Up to 15 million operating cycles
- Dimensions (H × W × D): 83 × 45 × 88 mm
- Standard: IS/IEC 60947-4-1, IEC 60947-4-1, EN 60947-4-1
Suitable Applications
Motor starters, DOL starter panels, industrial control panels, machine control systems, pumps, fans, conveyors, motor feeders and general power-switching applications.
