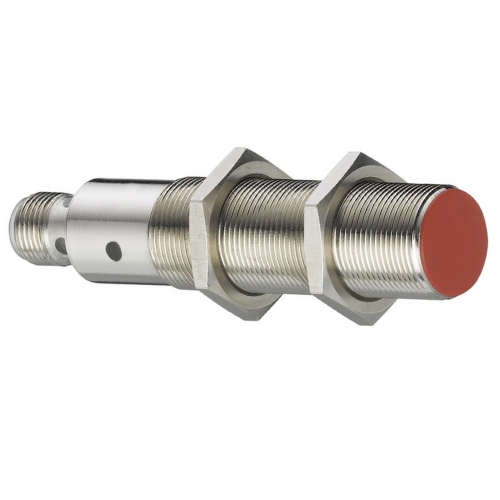

Leuze LCS-2M12B-F03PNO-M12 Capacitive Sensor
Leuze LCS-2M12B-F03PNO-M12 is a flush-mount M12 capacitive sensor with an adjustable 1-3 mm sensing range, PNP NO output, 10-30 VDC supply and M12 4-pin connector. Suitable for reliable non-contact detection in industrial automation applications.
SKU - 50136517
Out of stock
₹1,814.00
Customize
Product Full Name :
LCS-2M12B-F03PNO-M12 - Capacitive sensor Description :
Leuze LCS-2M12B-F03PNO-M12 is an M12 cylindrical capacitive sensor with adjustable 1-3 mm sensing distance, PNP normally-open output and M12 4-pin connector. Designed for non-contact detection in industrial automation and machine applications. Share:
Product Details
Leuze LCS-2M12B-F03PNO-M12 Capacitive Sensor, Part No. 50136517, is designed for reliable non-contact object detection in industrial automation, machinery and material-handling applications. The sensor features a cylindrical M12 x 1 metal housing, flush installation and an adjustable nominal switching distance of 1-3 mm. Sensitivity can be adjusted using the integrated multiturn potentiometer.
Technical Details
- Brand: Leuze
- Model: LCS-2M12B-F03PNO-M12
- Part No.: 50136517
- Product Type: Capacitive Sensor
- Series: LCS-2
- Nominal Switching Distance: 1-3 mm
- Assured Switching Distance: 2.4 mm
- Supply Voltage: 10-30 VDC
- Output Type: PNP transistor
- Switching Principle: NO - Normally Open
- Rated Operating Current: 200 mA
- Switching Frequency: 100 Hz
- Connector: M12, 4-pin, male, A-coded
- Thread Size: M12 x 1 mm
- Installation: Embedded / Flush
- Dimensions: Ø12 x 68 mm
- Housing Material: Metal
- Sensing Face: PBT plastic
- Sensitivity Adjustment: Multiturn potentiometer
- Indicator: 1 LED
- Protection Rating: IP67
- Operating Temperature: -25°C to +70°C
- Net Weight: 34 g
- Protection: Short-circuit and reverse-polarity protection
Suitable Applications
Object and material detection, packaging machinery, filling and handling equipment, industrial automation systems, machine control and process-monitoring applications.
