Leuze

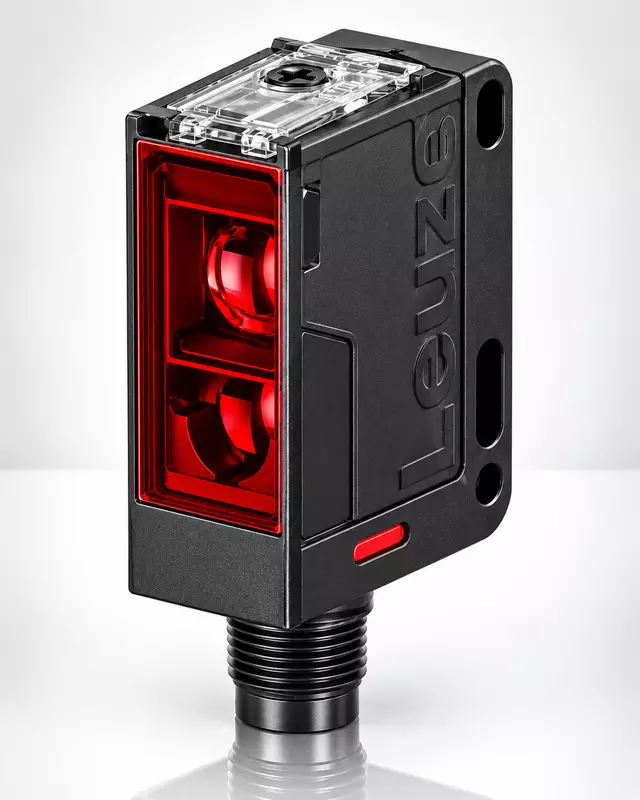

Leuze HT15 Diffuse Photoelectric Sensor with Background Suppression
Leuze HT15 diffuse photoelectric sensor with adjustable background suppression, 50-1,000 mm adjustment range, 10-30 V DC supply and IP67 protection. Select output, light source and connection.
Non-returnable
₹5,400.00
Output and Switching Mode:
Light source:
Connection:
Customize
Share:
Product Details
Leuze HT15 series diffuse photoelectric sensor with background suppression. Adjustment range: 50-1,000 mm. Guaranteed operating range on a 90% white target: 12-1,000 mm; on an 18% gray target: 12-700 mm; on a 6% black target: 12-500 mm. Supply: 10-30 V DC. One digital switching output, 1 ms response time, 500 Hz switching frequency and IP67 protection. Select the required PNP or NPN output, red or infrared light source and cable/connector configuration. Each option combination corresponds to the manufacturer model and part number shown on the variant.
