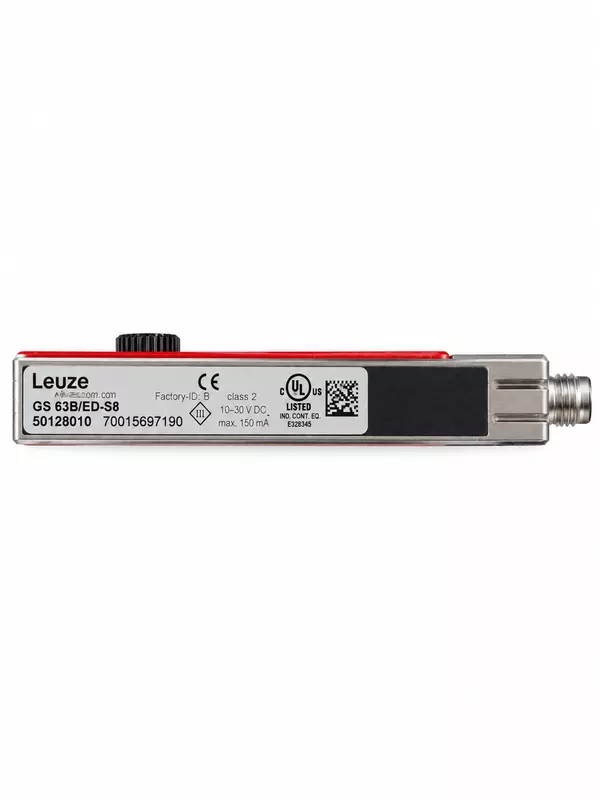

Leuze - Forked photoelectric sensor GS 63B/6D S8
Leuze GS 63B/6D is a fork-type photoelectric sensor designed for reliable detection of non-transparent labels. It features a 3 mm fork opening, infrared LED, 10 kHz switching frequency, push-pull output and 10-30 VDC supply for high-speed labeling and packaging applications.
Non-returnable
SKU - 50128006
₹7,500.00
₹9,500.00
Customize
Product Full Name :
Leuze - Forked photoelectric sensor GS 63B/6D S8 Full Product Name
Description :
Leuze GS 63B/6D is a fork-type photoelectric sensor with a 3 mm slot width, ideal for precise label and edge detection. It features a fast 10 kHz switching frequency, infrared LED, push-pull output, and operates on 10–30 V DC. Compact and robust, suited for packaging and labeling machines. In stock:
1
Share:
Product Details
Leuze GS 63B/6D Forked Photoelectric Sensor, Part No. 50128006, is designed for precise detection of non-transparent labels in industrial labeling, packaging and automation systems. The sensor uses an infrared optical principle with a 3 mm mouth width and 61 mm mouth depth, allowing labels and backing material to pass through the fork for reliable detection.
Technical Details
- Brand: Leuze
- Model: GS 63B/6D
- Part No.: 50128006
- Product Type: Forked Photoelectric Sensor
- Series: 63
- Operating Principle: Optical
- Application: Detection of non-transparent labels
- Minimum Label Width: 2 mm
- Minimum Label Gap: 2 mm
- Light Source: Infrared LED
- Wavelength: 940 nm
- Supply Voltage: 10-30 VDC
- Output: Push-pull transistor
- Switching Principle: Switching signal on label
- Maximum Switching Current: 100 mA
- Switching Frequency: 10,000 Hz
- Response Time: 0.05 ms
- Mouth Width: 3 mm
- Mouth Depth: 61 mm
- Dimensions: 11 x 30 x 80 mm
- Connection: 2 m cable, 5-wire
- Protection Rating: IP67
- Operating Temperature: -20°C to +60°C
- Net Weight: 100 g
- Protection: Short-circuit and polarity-reversal protection
Suitable Applications
Label detection, label-gap detection, packaging machines, labeling machines, printing systems, high-speed material handling and industrial automation applications.
