Kinco- Servo Motor Power Cable MOTE-005-05-KC0

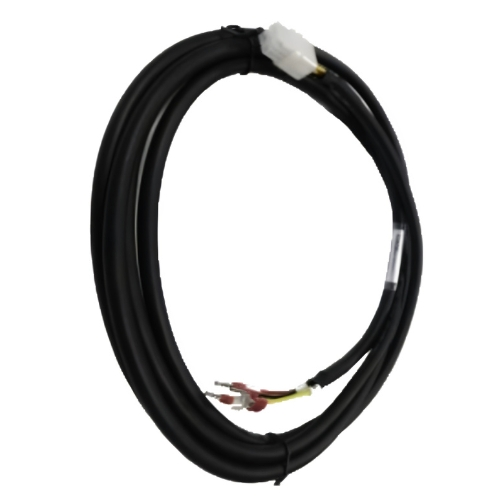

Kinco MOT-005-05-KC0 Servo Motor Power Cable is designed for connecting compatible Kinco servo motors to the servo drive power circuit. The cable has a rated current of 5A and a 5 m cable length, with the KC0 connector configuration identified by Kinco as an HF0-series standard motor connector.

The cable provides the three motor phase connections U, V and W, along with PE protective earth and shielding. It is intended for industrial motion-control applications where a reliable connection between the servo motor and drive is required.

Technical Details

• Brand: Kinco
• Model: MOT-005-05-KC0
• Product Type: Servo Motor Power Cable
• Rated Current: 5A
• Cable Length: 5 m
• Connector Code: KC0
• Motor Connector Type: HF0-series standard connector
• Power Connections: U, V, W, PE
• U Wire: Yellow
• V Wire: Red
• W Wire: Black
• PE Wire: Yellow-Green
• Shield: Metal-ring / shield connection
• Brake Lead: Not included in this cable configuration
• Application: Kinco servo motor power connection
• Compatibility: Selected Kinco servo motors using KC0 connector configuration

Suitable Applications

Servo motor wiring, CNC machines, packaging machinery, automated production equipment, positioning systems, motion-control panels and other Kinco servo-drive applications.
