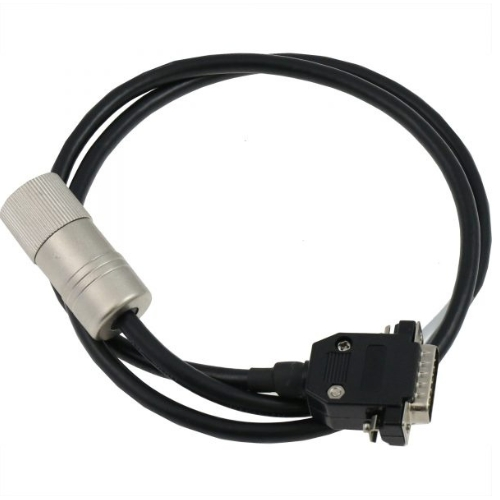

Kinco- Servo Motor Encoder Cable ENCCF-05-FC0
Kinco ENCCF-05-FC0 is a 5 m servo motor encoder cable for compatible Kinco servo systems, featuring a 17-pin motor connector, 15-pin D-sub drive connector and shielded signal wiring for reliable encoder feedback transmission.
Customize
Product Details
Kinco ENCCF-05-FC0 Servo Motor Encoder Cable is designed to carry encoder feedback signals between compatible Kinco servo motors and servo drives. The cable is identified by Kinco as an ENCCF-series encoder cable, with 05 indicating a 5 m cable length and FC0 indicating the HFO-series standard connector configuration.
The cable uses a 17-pin motor-side connector and a 15-pin D-sub connector and carries encoder signals including +5V, GND, A, /A, B, /B, Z and /Z, along with shield continuity for reliable feedback communication.
Technical Details
- Brand: Kinco
- Model: ENCCF-05-FC0
- Product Type: Servo Motor Encoder Cable
- Cable Series: ENCCF
- Cable Length: 5 m
- Connector Code: FC0
- Connector Standard: HFO-series standard connector
- Motor-Side Connector: 17-pin connector
- Drive-Side Connector: 15-pin D-sub connector
- Encoder Signals: +5V, GND, A, /A, B, /B, Z, /Z
- Shielding: Shield connection provided
- Application: Servo motor encoder feedback connection
- Compatibility: Compatible Kinco servo motors using the ENCCF / FC0 connection configuration
Suitable Applications
Servo motor feedback wiring, CNC machinery, packaging machines, motion-control systems, automated production equipment, positioning systems and industrial servo-drive applications.
