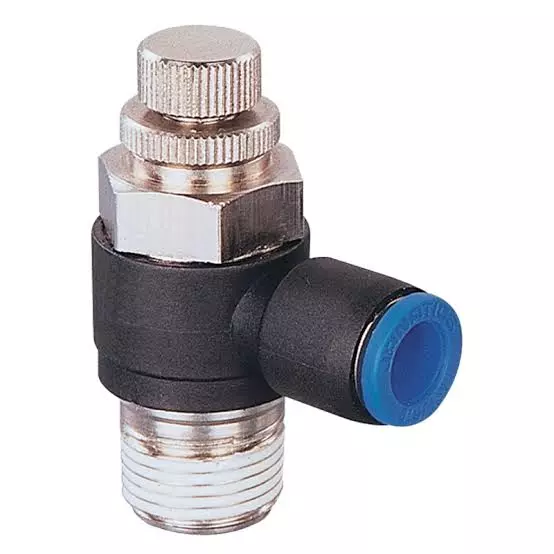

Janatics GR5105008 FLOW CONTROL VALVE - 8MM X 1/8"
Customize
Product Details
Janatics GR5105008 Flow Control Valve is designed for controlled exhaust-air regulation in pneumatic systems. It combines a needle valve for adjustable air-flow control with a non-return valve that permits free flow in the opposite direction, making it suitable for regulating pneumatic cylinder speed.
The valve is directly mountable on cylinder or valve ports and features a 360° rotatable body, fine air-flow regulation, nickel-plated construction and Teflon-coated male threads. The GR5 configuration is the exhaust-control version, with free flow from 1 to 2 and controlled flow from 2 to 1.
Technical Details
- Brand: Janatics
- Ordering No.: GR5105008
- Series: GR2 / GR5 Exhaust Control
- Product Type: Pneumatic Flow Control Valve
- Control Type: Exhaust Control
- Applicable Tube OD: 8 mm
- Thread: R1/8 Male
- Hex Size: 12 mm
- Free Flow: Minimum 200 L/min
- Controlled Flow: Maximum 140 L/min
- Operating Pressure: 1-10 bar
- Needle Rotations: 10
- Medium: Compressed Air - Dry / Lubricated
- Ambient Temperature: -10°C to +60°C
- Medium Temperature: +5°C to +50°C
- Applicable Tubes: Nylon / Polyurethane
- L1: 18 mm
- L2: 39 mm
- L3: 35.5 mm
- L4: 27 mm
- L5: 17 mm
- ØD1: 13.5 mm
- ØD2: 15 mm
- Mounting: Direct mounting on cylinder / valve port
- Body Rotation: 360°
- Male Thread Treatment: Teflon coated
Suitable Applications
Pneumatic cylinders, solenoid and directional valves, packaging machinery, automation systems, pneumatic control panels, material-handling equipment and other compressed-air applications requiring adjustable cylinder speed.
