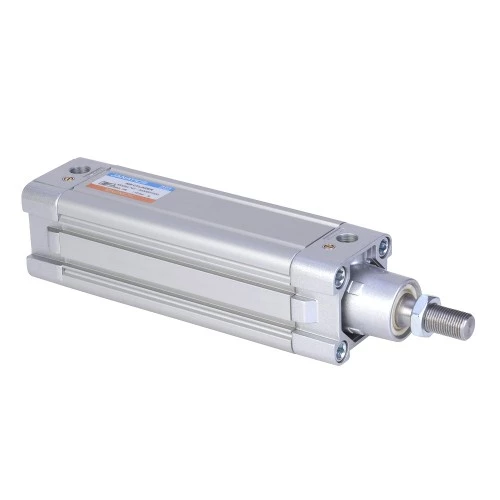

Janatics A23050040O 50x40mm Basic Magnetic Cylinder
SKU - A23050040O
Customize
Description :
Adjustable cushioning at both ends with elastomer pads Wide varieties of mountings as per ISO 15552 / VDMA 24562 standards Magnetic and Non magnetic version Aluminium profile (square) cylinder barrel Magnetic sensor common for all sizes (Refer Magnetic sensor catalogue) Optional - High temperature (Viton seals) 150°C max.** Optional - Non corrosive Stainless steel piston rod and piston rod lock nut (SS 304) Learn more about this product with our AI-powered insights
Learn more about this product with our AI-powered insightsLearn more about the product with AI Insights
In stock:
1
Share:
Product Details
Type: Basic cylinder, double acting
Magnetic piston: Sensor-ready for position detection
Bore × Stroke:50 mm × 40 mm
Cushioning: Adjustable cushioning (as per series design)
Built for consistent performance in factory environments
Specifications
- Cylinder TypeStandard (Tie-Rod)
- Acting TypeDouble Acting
- CushioningAdjustable Cushion
- Magnet for SensorYes (Magnetic Piston)
- Bore Size (mm)50
- Stroke Length (mm)40
- Mounting StyleBasic
- Port Size / ThreadG1/4
- Operating Pressure (bar)0.5–10 bar
- Operating Temperature (°C)-10 to 60
