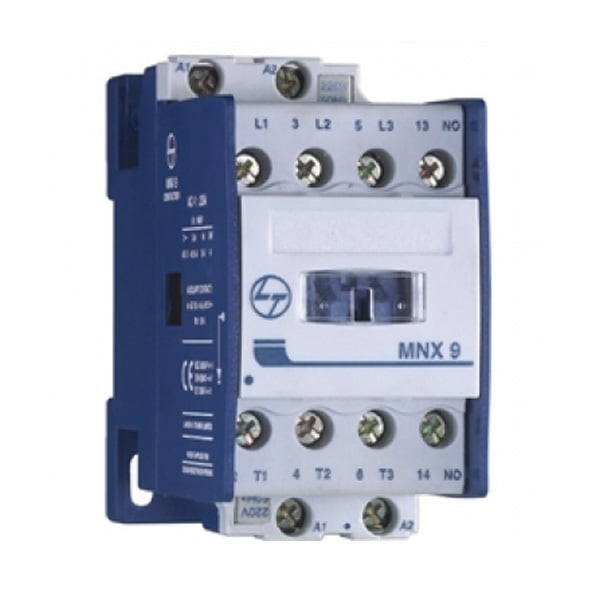

L&T Power Contactor MNX-9 3Pole CS94106 Coil Voltage 240VAC
Price:
₹655.00
L&T Power Contactor MNX-9 3Pole CS94106 Coil Voltage 240VAC
Customize
1. Compact Design: Space-saving and easy to mount in panels. 2. Finger Proof Terminals (IP20): Enhanced safety against accidental contact. 3. Dual Mounting: Suitable for DIN rail. 4. Low Power Consumption: Energy-efficient coil design. 5. Auxiliary Contacts Compatibility: Provision for adding auxiliary contact blocks (typically 1NO + 1NC). 6. High Electrical & Mechanical Life: Electrical life: ~1 million operations. Mechanical life: ~10 million operations.
1. Model: MNX-9 2. Part Number: CS94106 3. Number of Poles: 3 Pole 4. Coil Voltage: 240V AC (50/60 Hz) 5. Utilization Category: AC3 (for motor loads), AC1 (for resistive loads) 6. AC3 Rating (415V): 9 A (for 3-phase squirrel cage motors) 7. AC1 Rating (415V): Up to 20 A 8. Rated Operational Voltage (Ue): 690V AC (max) 9. Rated Insulation Voltage (Ui): 690V AC 10. Short Time Withstand Current (Icw): 100A for 1 sec 11. Control Circuit Voltage Range: 85% to 110% of rated coil voltage 12. Mechanical Life: 10 million operations 13. Electrical Life (AC3): 1 million operations 14. Mounting Type: DIN rail & Screw mounting 15. Standards Compliance: IEC 60947-4-1, IS/IEC 60947 16. Auxiliary Contacts: Optional (can add 1NO+1NC or more blocks) 17. Ambient Temperature: -5°C to +55°C 18. Protection Degree (Terminal): IP20 (finger-safe terminals)
