Festo

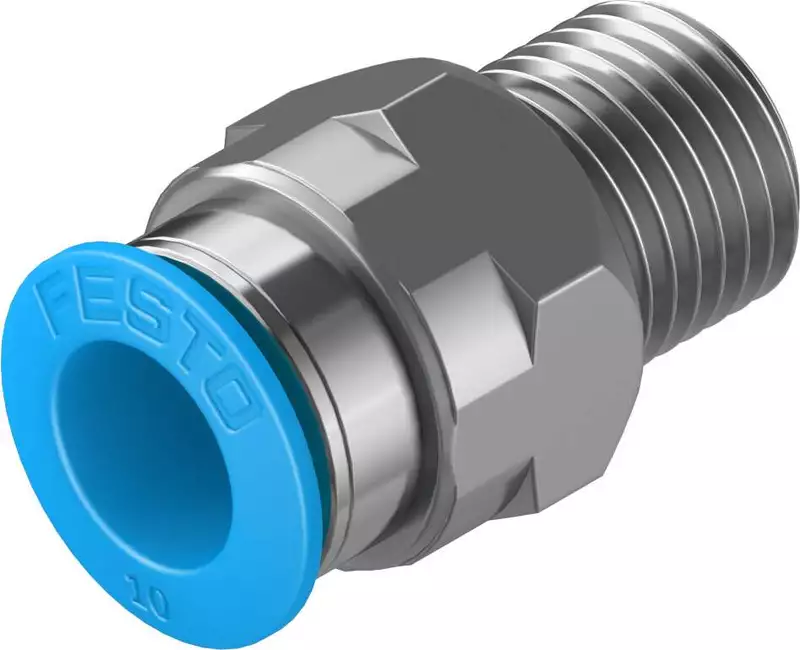

Festo QS-1/4-10 Push-in fitting
SKU - 153007
₹150.00
Customize
Product Full Name :
1.Thread Size: R 1/4" Male 2.Tubing Size: 10 mm (OD) 3.Material: Nickel-plated brass (body), POM (release ring), NBR (seal) 4.Operating Pressure: -0.95 to 14 bar 5.Operating Medium: Compressed air (ISO 8573-1:2010 [7:-:-]), Water (per guidelines) 6.Temperature Range: -10°C to +80°C 7.Corrosion Resistance: Class 1 (low corrosion stress) 8.Weight: 19 g 9.Compliance: RoHS compliant Full Product Name
Description :
1.Thread Size: R 1/4" Male 2.Tubing Size: 10 mm (OD) 3.Material: Nickel-plated brass (body), POM (release ring), NBR (seal) 4.Operating Pressure: -0.95 to 14 bar 5.Operating Medium: Compressed air (ISO 8573-1:2010 [7:-:-]), Water (per guidelines) 6.Temperature Range: -10°C to +80°C 7.Corrosion Resistance: Class 1 (low corrosion stress) 8.Weight: 19 g 9.Compliance: RoHS compliant In stock:
6
