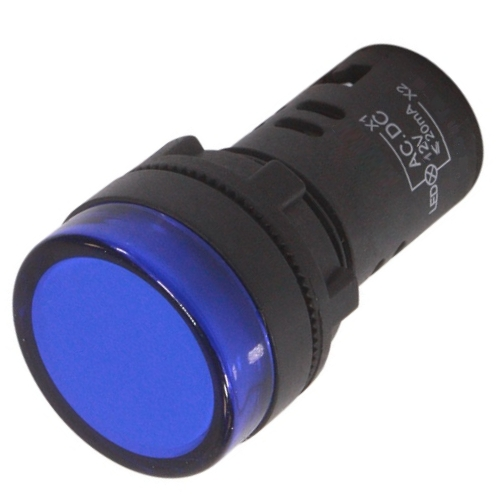

Protected Led indicator Blue,380V AC
Protected Led indicator Blue,380V AC
Non-returnable
SKU - CPIL-22DS-B
₹84.00
Customize
Product Full Name :
1.Model: AD22-22DS 2.Color: Blue 3.Mounting Hole Diameter: 22 mm 4.Rated Voltage Options: AC/DC 6V, 12V, 24V, 36V, 48V, 110V, 220V, 380V 5.Working Voltage Range: ±20% of rated voltage 6.Rated Current: ≤ 20 mA 7.Light Source: LED 8.Power Consumption: ≤ 0.5W 9.Insulation Resistance: ≥ 2 MΩ 10.Dielectric Strength: AC 2.5kV for 1 minute 11.Ambient Operating Temperature –25°C to +55°C 12.Relative Humidity: ≤ 98% 13.Service Life (LED): ≥ 30,000 hours 14.Protection Grade: IP65 (front panel only) 15.Material: Flame-retardant polycarbonate body & lens 16.Installation Method: Panel mounting with screw terminal connection Full Product Name
Description :
Protected Led indicator Blue,380V AC In stock:
49
