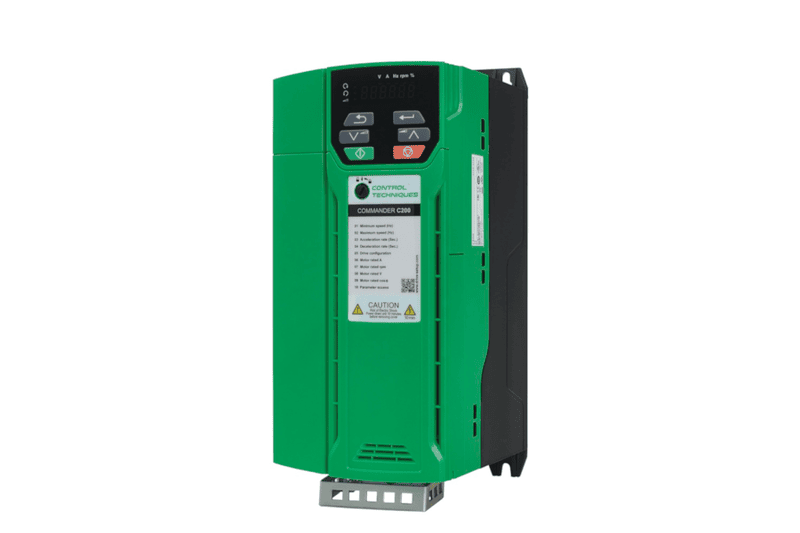

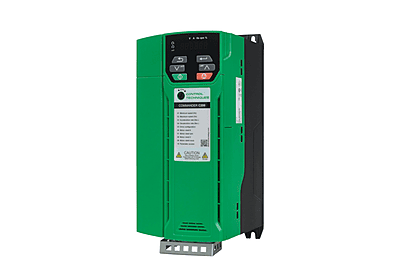

Control Techniques- VFD C200 series 3 Ph. 5.5 kW 380/480 Vac ±10%
Price:
₹31,560.00
Control Techniques- VFD C200 series 3 Ph. 5.5 kW 380/480 Vac ±10%
Customize
1. Open-loop vector or V/F induction motor control; RFC-A (enhanced open-loop performance). 2. Supports various fieldbus systems, including Modbus RTU, EtherCAT, PROFIBUS, and more, via optional plug-in modules. 3. Easy Setup. 4. Built-in PLC and PID control for enhanced process management. 5. Equipped with energy-saving features to optimize performance and reduce operational costs. 6. Dual STO functionality for enhanced safety. 7. Conformal coated PCBs and a patented airflow system for durability in harsh environments.
1. Input Voltage: Three-phase 380–480 V AC ±10% 2. Power Rating: 5.5 kW (7.5 HP) 3. Output Current: 13.5 A 4. Frequency Range: 50/60 Hz ±5% 5. Overload Capacity: 150% for 60 seconds, 180% for 3 seconds 6. Protection Rating: IP20 7. Humidity: Up to 95% (non-condensing)
