Smidnya

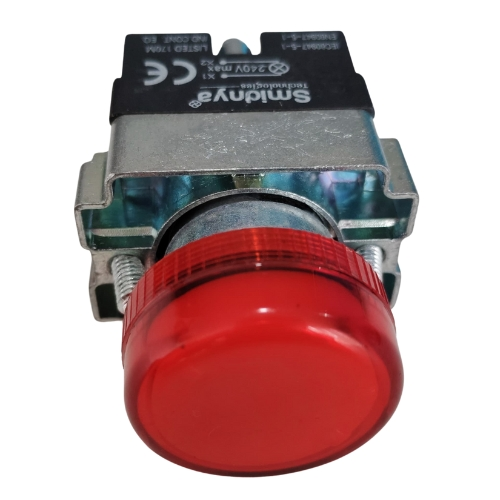

Pilot light 220V-240V Red
Pilot light 220V-240V Red
Non-returnable
SKU - CPSWM-BV64
₹0.00
Customize
Product Full Name :
1.Series / Model: LAY5‑BV64 (part of Schneider/Square‑D “LAY5” line) 2.Color: Red 3.Mounting Size: Ø 22 mm panel cut-out 4.Supply Voltage: 220–240 V AC, 50/60 Hz (direct connection) 5.Mounting Method: BA9s bulb base, bulb included (incandescent or neon type, per variant) 6.Rated Insulation Voltage: 600 V AC 7.Insulation Resistance: ≥ 50 MΩ 8.Dielectric Withstand: 2.5 kV AC, 1 min 9.Brightness: Approx. 60 cd/m² typical 10.Service Life (continuous): ≥ 100,000 h 11.Operating Temperature: –25 °C to 12.Humidity: ≤ 85% RH (non-condensing) 13.Vibration: 2–80 Hz, 0.7 g 14.Pollution Degree: 3 15.Ingress Protection: IP65 (switch body, front panel level) Full Product Name
Description :
Pilot light 220V-240V Red In stock:
50
