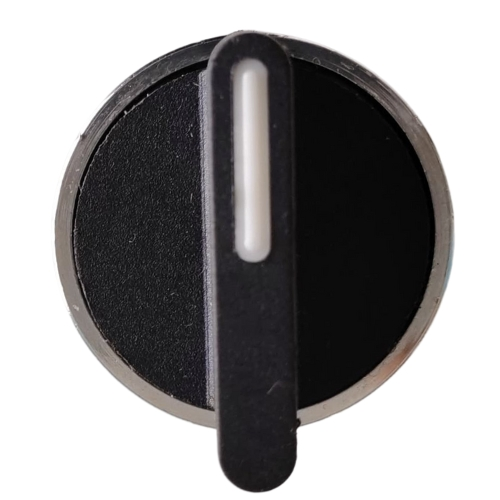

Selector switch head standard handle 2-position stay put
Non-returnable
SKU - CPSWM-BD2
₹0.00
Customize
Product Full Name :
1.Part Number: LAY5-BD2 2.Type: Selector switch head 3.Handle Type: Standard black knob 4.Positions: 2-position (stay-put in both positions) 5.Switching Action: Maintained (stay-put) 6.Mounting Hole Diameter: 22.5 mm 7.Material: High-strength thermoplastic handle and bezel 8.Front Bezel: Circular, plastic 9.Operating Angle: 90° (typically 0°–90° or 45°–45°) 10.Protection Degree: IP40 (can be IP65 with proper sealing) 11.Mechanical Durability: ≥ 1 million operations 12.Operating Temperature: -25°C to +70°C 13.Standards Compliance: IEC 60947-5-1 / EN 60947 Full Product Name
Description :
1.Used for manual selection between two states (e.g., ON/OFF, Manual/Auto) 2.Stay-put mechanism keeps the handle in position until manually changed 3.Simple, reliable design ideal for industrial panels and machines 4.Compatible with standard LAY5 contact blocks (e.g., BE101, BE102) 5.Quick installation in standard 22 mm panel cut-outs 6.Durable construction for long-term, heavy-duty use In stock:
5
