Leuze

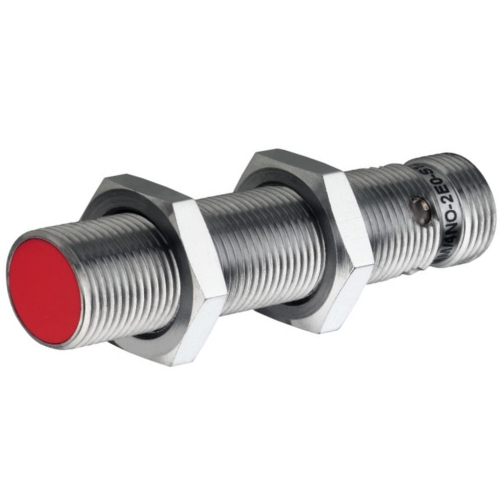

Leuze 112 MM- 4 NO-4EO-M12 PNP-N.O.
SKU - 50129878
₹0.00
Customize
Product Full Name :
Parameter Value 1.Part Number 50129878 2.Model IS 112 MM/4NO-4E0-M12 3.Sensor Type Inductive Proximity Switch 4.Mounting Type Cylindrical, Threaded M12 × 1 (Embedded) 5.Sensing Distance (Sn) 4 mm 6.Effective Operating Range (Sa) 0 – 3.2 mm 7.Switching Output PNP, Normally Open (NO) 8.Number of Outputs 1 Switching Output 9.Connection Type M12 4-pin male connector (A-coded) 10.Supply Voltage (UB) 10 – 30 V DC 11.Max Switching Current 200 mA 12.Residual Current ≤ 0.01 mA 13.Voltage Drop (Ud) ≤ 2 V 14.No-load Supply Current ≤ 10 mA 15.Switching Frequency ≤ 3,000 Hz (3 kHz) 16.Switching Hysteresis 5 – 15% of Sn 17.Repeat Accuracy ≤ 5% 18.Temperature Range –25°C to +70°C 19.Protection Rating IP67 20.Short-circuit Protection Yes 21.Polarity Reversal Protection Yes 22.Housing Material Nickel-plated brass 23.Sensing Face Material PBT (plastic) 24.Indicator Yellow LED (Switching Status) 25.Standards Compliance IEC 60947-5-2 26.Weight Approx. 60 g Full Product Name
Description :
1.Compact M12 housing suitable for embedded installations in industrial applications. 2.Robust design with IP67 protection against dust and water. 3.High switching frequency (up to 3 kHz) suitable for high-speed applications. 4.Yellow LED provides clear status indication for switching. 5.Equipped with overload, short-circuit, and reverse polarity protection. 6.Reliable sensing distance of 4 mm for standard ferrous materials. 7.M12 4-pin connector allows for quick and secure wiring. 8.Compatible with various materials with correction factors: 9.Steel: 1.0 10.Stainless Steel: 0.6–1.0 11.Brass: 0.35–0.5 12.Aluminum: 0.35–0.45 13.Copper: 0.25–0.45 In stock:
2
