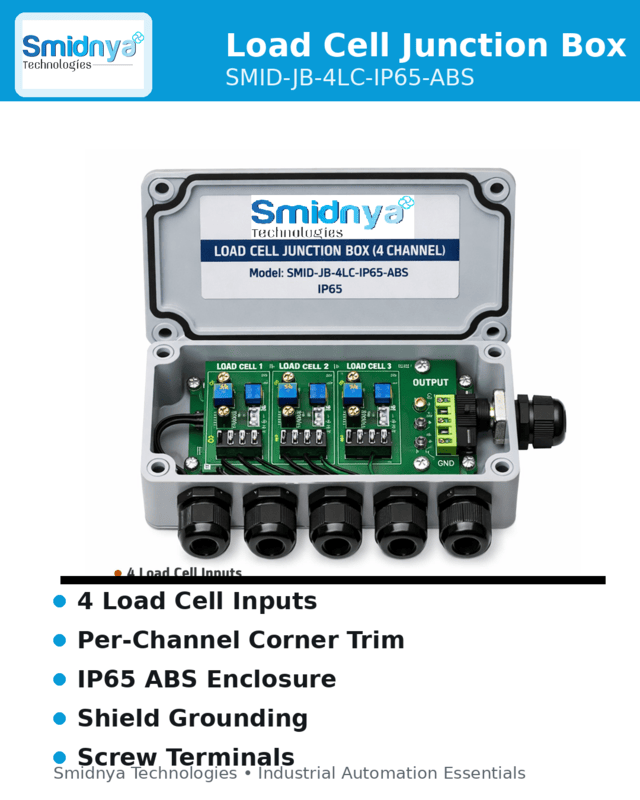

Smidnya Load Cell Junction Box (4 Channel)
SKU - SMID-JB-4LC-IP65-ABS
Out of stock
₹3,800.00
₹5,000.00
Customize
Description :
Connectivity / Channels Load cell inputs: 4 channels (supports 4 load cells) Output: 1 combined/summed output to indicator / transmitter / PLC module Load cell types supported: Strain-gauge load cells (typical) Wiring compatibility: 4-wire and 6-wire load cells (via terminals) Trimming / Balancing Channel adjustment: Individual trim for each channel (corner balance) Trim type: Multi-turn precision potentiometers (per channel) Electrical Excitation pass-through: Supported (from indicator/module to load cells) Typical excitation range: 5–15 VDC (as per controller/indicator) Signal type: mV/V load cell signal (standard) Shield handling: Dedicated shield/earth termination for noise reduction Terminals / Internal Terminal type: Industrial screw terminals (field-friendly wiring) PCB: Dedicated summing + trimming board Wire entry: Cable glands / conduit entry (depending on model) Enclosure / Protection Enclosure material (default SKU): SS304 Ingress protection: IP67 (dust-tight + water immersion protection) Mounting: Wall / panel mount with fixing points Operating temperature: Typically -10°C to +55°C (industrial standard range) Applications: Platform scale, tank/silo weighing, hopper, batching, conveyor weigher, checkweigher interfaces Cable Glands (typical configuration) Inputs: 4 × cable entries (one per load cell) Output: 1 × cable entry (to indicator/module) (Exact gland sizes can be selected as per your cable OD: M16/M20 common options.) Learn more about this product with our AI-powered insights
