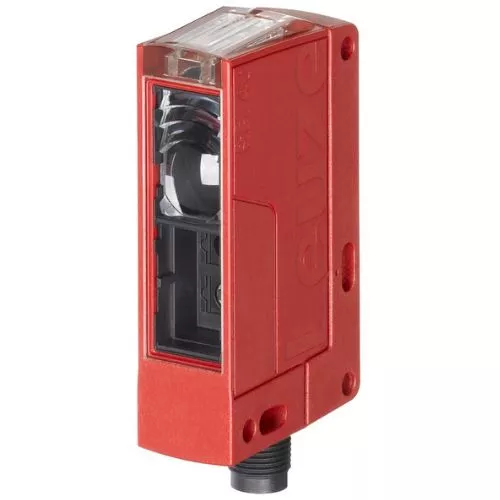

Leuze HT46CL2/4P-M12 - Diffuse sensor with background suppression
Operating range limit 0.05 ... 1.2 m Adjustment range 120 ... 1,200 mm Supply voltage UB 10 ... 30 V, DC, Incl. residual ripple Outputs Number of digital switching outputs 2 Piece(s) Switching output 1 Switching element Transistor, PNP Switching principle Light switching Switching output 2 Switching element Transistor, PNP Switching principle Dark switching Timing Switching frequency 500 Hz Response time 1 ms Connection Connection 1 Function Signal OUT, Voltage supply Type of connection Connector Thread size M12 Material Plastic No. of pins 4 -pin Operation and display Operational controls Multiturn potentiometer
SKU - 50134608
Out of stock
₹6,777.00
Customize
Product Full Name :
Operating Principle: Diffuse reflection with background suppression Series: 46C Light Source: Red laser (Class 2, 655 nm) Sensing Range: White (90% reflectivity): 0.05 – 1.0 m Gray (18%): 0.07 – 0.75 m Black (6%): 0.09 – 0.6 m Maximum range limit: 1.2 m Adjustment Range: 120 – 1,200 mm (via multiturn potentiometer) Black-White Error: less than10% up to 1000 mm Switching Outputs: 2 PNP transistors Output 1: Light switching Output 2: Dark switching Switching Frequency: 500 Hz Response Time: 1 ms Supply Voltage: 10 – 30 V DC (with up to 15% residual ripple) Current Consumption: 0 – 30 mA Connection: 4-pin M12 male connector (A-coded) Housing Material: Plastic (PC-PBT) Lens Cover Material: Plastic / PMMA Dimensions (W x H x L): 20.5 mm x 76.3 mm x 44 mm Weight: 60 g Display: LED indicators Operating Temperature: -40°C to +60°C Storage Temperature: -40°C to +70°C Protection Class: IP67 / IP69K Full Product Name
Description :
Operating range limit 0.05 ... 1.2 m Adjustment range 120 ... 1,200 mm Supply voltage UB 10 ... 30 V, DC, Incl. residual ripple Outputs Number of digital switching outputs 2 Piece(s) Switching output 1 Switching element Transistor, PNP Switching principle Light switching Switching output 2 Switching element Transistor, PNP Switching principle Dark switching Timing Switching frequency 500 Hz Response time 1 ms Connection Connection 1 Function Signal OUT, Voltage supply Type of connection Connector Thread size M12 Material Plastic No. of pins 4 -pin Operation and display Operational controls Multiturn potentiometer Share:
