Moons

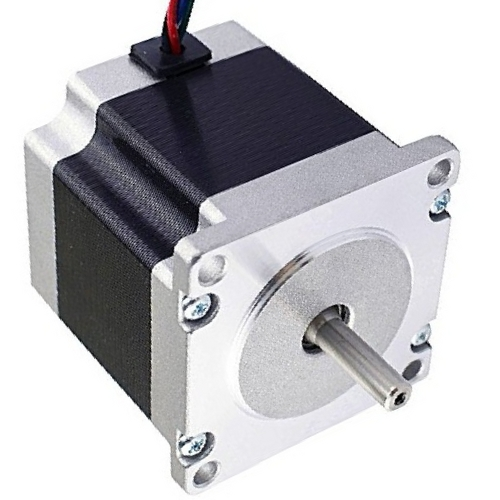

NEMA23(56mm) 1.8°2 Phase Hybrid Stepper Motors, Single Shaft, Body Length 54.0mm, Holding Torque 1.25N.m, Rated Current 3.7A, Rotor Inertia 260.0gcm2
SKU - AM23HS2450-01
₹3,528.00
Customize
Product Full Name :
1.Frame Size: NEMA23 (56mm) 2.Step Angle: 1.8° (200 steps per revolution) 3.Phase: 2 4.Holding Torque: 1.5 N·m 5.Rated Current: 3.7 A 6.Rotor Inertia: 215.0 g·cm² 7.Shaft Type: Single Shaft 8.Body Length: 55.0 mm 9.Step Accuracy: ±5% 10.Axial Load (Push): 40 N (9 lbs) 11.Axial Load (Pull): 130 N (30 lbs) 12.Radial Load: 70 N (15.5 lbs) at the flat center 13.IP Rating: 40 Full Product Name
Description :
NEMA23(56mm) 1.8°2 Phase Hybrid Stepper Motors, Single Shaft, Body Length 54.0mm, Holding Torque 1.25N.m, Rated Current 3.7A, Rotor Inertia 260.0gcm2 In stock:
1
