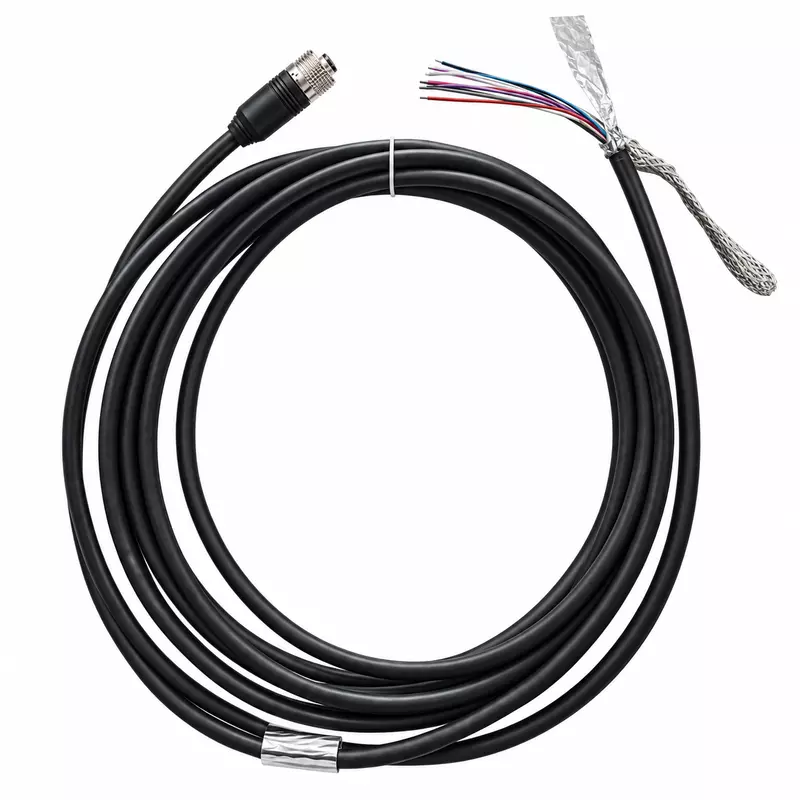

Leuze KD S M12 Sensor Connection Cable
/
Leuze
Leuze KD S M12 Sensor Connection Cable
SKU - 1542721MSD1C1L3
Out of stock
₹2,990.00
₹2,990.00
₹2,990.00
Device Connector:
Select Device Connector
Cable End:
Select Cable End
Cable Length:
Select Cable Length
Customize
Product Full Name :
1.Part Number: 50130282 2.Connector 1: M12 female, axial, A-coded, 12-pin 3.Connector 2: Open-ended 4.Cable Length: 5 meters 5.Shielding: Yes 6.Cable Jacket Material: PUR (Polyurethane) 7.Wire Insulation: PP (Polypropylene) 8.Color: Black 9.Silicone-Free: Yes 10.Drag Chain Compatible: Yes 11.Torsion Resistance: ±30°/m, up to 2 million cycles at 35 cycles/min 12.Bending Radius: Flexible use: ≥10× cable diameter Stationary use: ≥10× cable diameter 13.Operating Voltage: Up to 30 V AC/DC 14.Temperature Range: Flexible use: -25°C to +80°C Stationary use: -40°C to +80°C 15.Protection Class: IP65 / IP67 Full Product Name
Description :
Electrical data Performance data Operating voltage Max. 30 V AC/DC Connection Connection 1 Type of connection Connector Thread size M12 Type Female No. of pins 12 -pin Encoding A-coded Version Axial Connection 2 Type of connection Open end Cable properties Number of conductors 12 Piece(s) Sheathing color Black Shielded Yes Silicone-free Yes Cable length 5,000 mm Sheathing material PUR Wire insulation PP Suitability for drag chains Yes Traverse rate Max. 3.3 m/s with horiz. traverse path of 5m and and max. acceleration of 5m/s² Properties of the outer sheathing Free of CFC, cadmium, silicone, halogen and lead, matt, low-adhesion, abrasion-resistant, easily machine-processable Resistance of the outer sheathing Hydrolysis and microbe resistant, good oil, gasoline and chemical resistance in accordance with VDE 0472 part 803 test B, flame retardant in accordance with UL 1581 VW1 / CSA FT1 / IEC 60332-1, IEC 60332-2-2 Torsion suitability±30° / m (max. 2 mio. cycles with 35 cycles / min) Mechanical data Width across flats 13 mm Bending cycles 5,000,000 Piece(s) Bending radius, flexible laying, min.Min. 10 x cable diameter Bending radius, stationary laying, min.Min. 5 x cable diameter Share:
