RR Cables

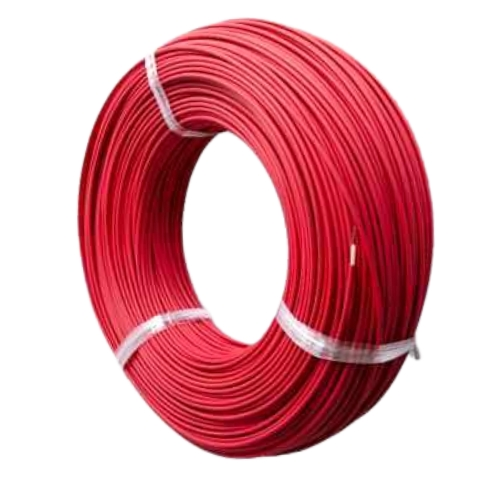

RR 0.5 sqmm Single core Flexible Cable Red
SKU - 8544499910
₹583.59
Customize
Product Full Name :
Parameter Value 1.Conductor Area: 0.5 sqmm 2.Conductor Construction: 16 × 0.2 mm (approx. – flexible class 5) 3.Voltage Grade: 300/500 V AC (as per IS 694) 4.Insulation Material: PVC Type A (or FR/FRLS/HRFR options) 5.Insulation Thickness :~0.6 mm 6.Overall Diameter :Approx. 2.0 – 2.2 mm 7.Current Carrying Capacity: ~7 A (in open air); ~5–6 A (in conduit) 8.Temperature Rating :-15°C to +70°C (PVC); up to +85°C (FRLS) 9.Flame Retardance: IS 10810, Part 53 (self-extinguishing) 10.Standard Compliance: IS 694:2010, RoHS compliant 11.Color Options: Red (standard), also available in black, blue, green, etc. 12.Application :Internal panel wiring, lighting circuits, etc. 13.Packing: 90 m coil (standard) Full Product Name
Description :
Parameter Value 1.Conductor Area: 0.5 sqmm 2.Conductor Construction: 16 × 0.2 mm (approx. – flexible class 5) 3.Voltage Grade: 300/500 V AC (as per IS 694) 4.Insulation Material: PVC Type A (or FR/FRLS/HRFR options) 5.Insulation Thickness :~0.6 mm 6.Overall Diameter :Approx. 2.0 – 2.2 mm 7.Current Carrying Capacity: ~7 A (in open air); ~5–6 A (in conduit) 8.Temperature Rating :-15°C to +70°C (PVC); up to +85°C (FRLS) 9.Flame Retardance: IS 10810, Part 53 (self-extinguishing) 10.Standard Compliance: IS 694:2010, RoHS compliant 11.Color Options: Red (standard), also available in black, blue, green, etc. 12.Application :Internal panel wiring, lighting circuits, etc. 13.Packing: 90 m coil (standard) In stock:
8000
