Autonics

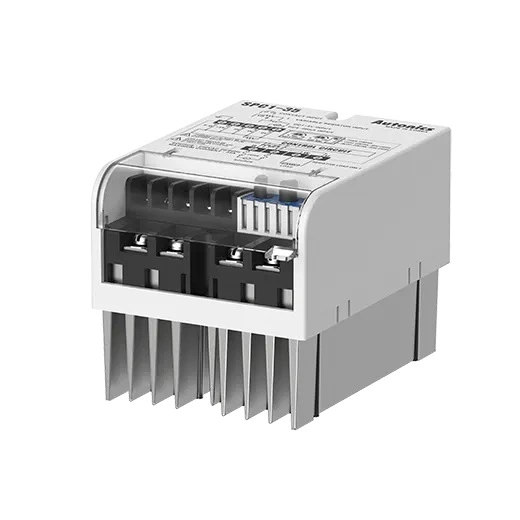

Autonics Single Phase Power Controllers
Autonics Single Phase Power Controllers
Non-returnable
SKU - SPC1-35-E
₹0.00
Customize
Product Full Name :
1. Control Phase: Single-phase 2. Rated Load Voltage: 220 VAC~ 3. Rated Load Current: 35 A 4. Control Inputs: a. DC 4–20 mA b. 1–5 VDC c. External 24 VDC d. External adjuster (1 kΩ) e. External contact (ON/OFF) 5. Control Methods: a. Phase control b. Cycle control (zero cross turn-on) with control periods of 0.5 sec, 2 sec, or 10 sec c. ON/OFF control (zero cross turn-on) 6. Applied Load: Resistive load (minimum load: over 5% of rated current) 7. Power Supply: 220 VAC~ 50/60 Hz 8. Cooling Method: Natural cooling 9. Control Circuit: Microcontroller (Micom) control type 10. Ambient Temperature: 0 to 50°C (storage: -25 to 65°C) 11. Ambient Humidity: 35 to 85% RH Full Product Name
Description :
Autonics Single Phase Power Controllers In stock:
