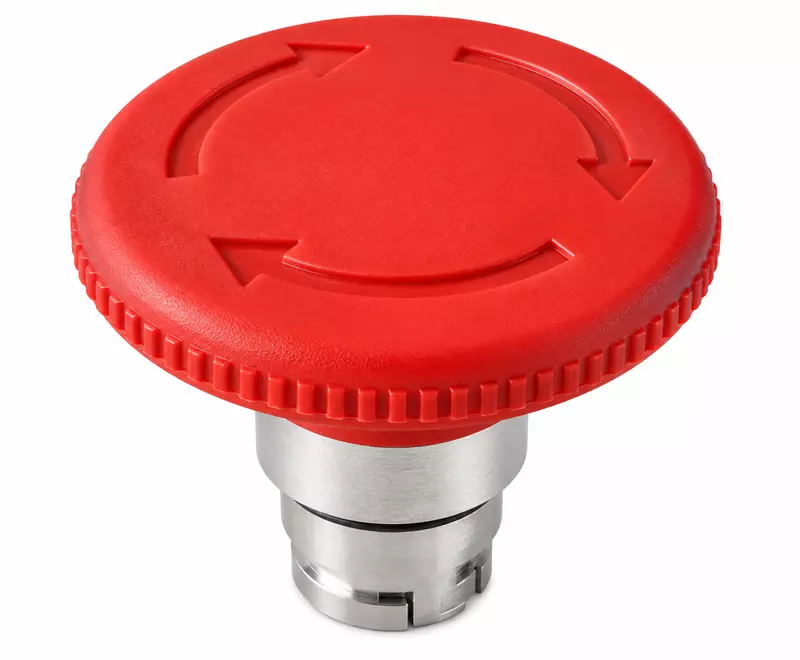

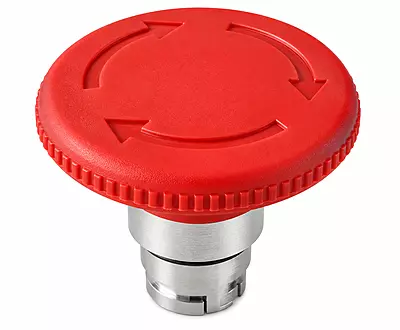

Emergency stop head red φ60 turn to release
Red emergency stop head with 60 mm mushroom cap, designed for quick shutoff in industrial systems. Features turn-to-release mechanism and 22 mm mounting, suitable for safety control panels and machinery.
Non-returnable
SKU - CPSWM-BS64
₹0.00
Customize
Product Full Name :
1.Series: LAY5 (industrial push‑button switches) 2.Model: BS64 – 60 mm diameter, self‑resetting mushroom head 3.Mounting Diameter: 22 mm control panel cutout (common to LAY5) 4.Rated Insulation Voltage (Ui): 600 V 5.Thermal Current (Ith, AC‑15): 2 A at 415 V; 3 A at 220 V; 10 A at 24 V 6.Rated Operational Voltages (Ue): up to 380 V AC / 220 V DC 7.Make Current (Ie): AC‑15: 2.5 A; DC‑13: 0.3 A 8.Contact Resistance: ≤ 50 mΩ 9.Dielectric Withstand (Power‑Frequency): 1 890 V AC, 50 Hz — 5 s 10.Mechanical Life: 1 000 000 cycles (emergency types: 100 000) 11.Protection Rating: IP40 (typical); IP65 variants available 12.Ambient Temp.: –20 °C to +65 °C (operational); storage: –20 °C to +55 °C 13.Actuator Diameter: 60 mm 14.Panel Cutout: 22 mm 15.Panel Depth: ~43 mm (see datasheet drawing) Full Product Name
Description :
Red emergency stop head with 60 mm mushroom cap, designed for quick shutoff in industrial systems. Features turn-to-release mechanism and 22 mm mounting, suitable for safety control panels and machinery. In stock:
5
