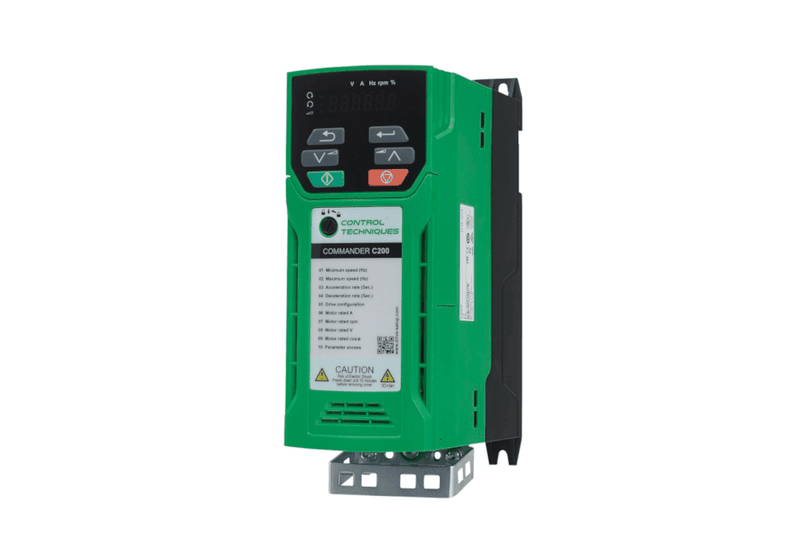

Control Techniques- VFD C200 series 3 Ph. 0.75 kW 380/480 Vac ±10%
Price:
₹13,910.00
control Techniques- VFD C200 series 3 Ph. 0.75 kW 380/480 Vac ±10%
Customize
1. Control Capabilities: Features open-loop vector control for precise speed and torque management, along with built-in PID and an onboard PLC for enhanced automation. 2. User-Friendly Setup: Quick commissioning with only four key parameters required for initial setup. 3. Safety Features: Equipped with dual Safe Torque Off (STO) functionality to ensure safe operation. 4. Energy Efficiency: Incorporates the latest energy-saving features to optimize performance and reduce operational costs. 5. Expandability: Offers plug-in options for advanced control, allowing customization to specific application requirements. 6. Environmental Resilience: Designed to operate in ambient temperatures ranging from -20°C to 40°C, suitable for various industrial environments.
1. Input Voltage: 380-480V AC, 3-phase 2. Input Frequency: 50-60 Hz 3. Output Power: 0.75 kW (1 HP) 4. Output Voltage: 0 to input voltage (380-480V AC) 5. Switching Frequency: Adjustable from 3 kHz to 16 kHz 6. Overload Capacity: 150% of rated current for 60 seconds 7. Efficiency: ≥ 98% under typical operating conditions 8. Ingress Protection: IP20 rating for indoor use
