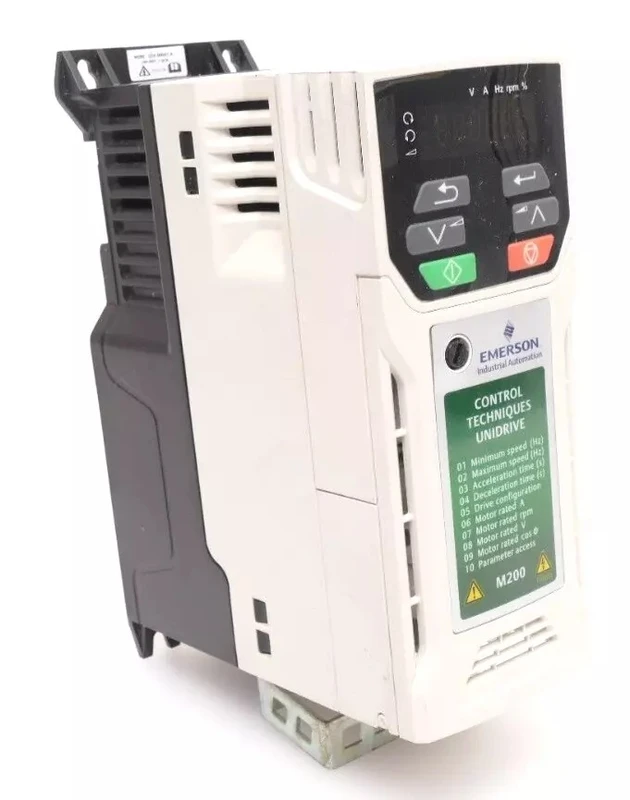

Control Technique- VFD M200 series 3 Ph. 1.5 kW
Control Techniques M200 1.5 kW (3‑Phase) VFD is an open‑loop vector/voltage‑frequency drive designed for compact machine automation. It supports 200–240 V AC input, delivers up to 4.1 A for a 1.5 kW motor, and offers 0–550 Hz speed range. The drive includes built-in PLC logic, Modbus RTU, and optional fieldbus modules (Ethernet, PROFINET, CANopen). It features 150 % overload for 60 s, DIN‑rail mounting, integrated LED keypad, and compact IP20-rated metal housing (~1 kg)
Non-returnable
SKU - M200-02400041
₹14,592.00
Customize
Product Full Name :
1. Input Voltage: 200-240V AC, 3-phase 2. Output Power: 1.5 kW (2 HP) for 3-phase motors 3. Switching Frequency: 3 kHz (default), adjustable up to 16 kHz 4. Overload Capacity: 150% of rated current for 60 seconds 5. Cooling: Internal cooling with integrated fan 6. Digital Inputs: 4 configurable inputs (PNP/NPN) 7. Analog Inputs: 1 input (0-10V or 4-20mA) 8. Relay Output: 1 configurable relay (30V DC/250V AC, 5A) Full Product Name
Description :
Control Techniques M200 1.5 kW (3‑Phase) VFD is an open‑loop vector/voltage‑frequency drive designed for compact machine automation. It supports 200–240 V AC input, delivers up to 4.1 A for a 1.5 kW motor, and offers 0–550 Hz speed range. The drive includes built-in PLC logic, Modbus RTU, and optional fieldbus modules (Ethernet, PROFINET, CANopen). It features 150 % overload for 60 s, DIN‑rail mounting, integrated LED keypad, and compact IP20-rated metal housing (~1 kg) In stock:
