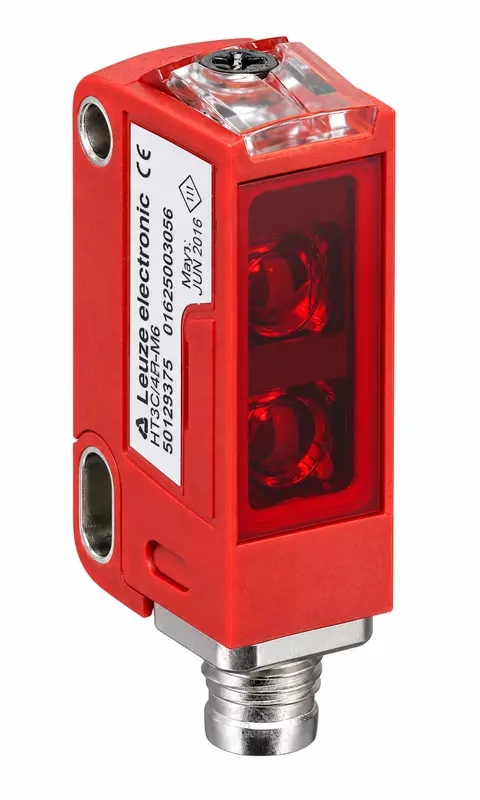

Leuze HT3CL2/6G-M8 - Diffuse sensor with background suppression suppression
Operating range limit 0.015 ... 0.55 m Adjustment range 20 ... 550 mm Light source Laser, Red Laser class 2, IEC/EN 60825-1:2007 Light spot size [at sensor distance]1 mm [550 mm] Shift angle Typ. ± 2° Electrical data Protective circuit Overvoltage protection, Polarity reversal protection, Short circuit protected Performance data Supply voltage UB10 ... 30 V, DC, Incl. residual ripple Residual ripple 0 ... 10 %, From UB Open-circuit current 0 ... 20 mA Outputs Number of digital switching outputs 2 Piece(s) Switching output 1 Switching element Transistor, Push-pull Switching principle Light switching (PNP)/dark switching (NPN) Switching output 2 Switching element Transistor, Push-pull Switching principle Dark switching (PNP)/light switching (NPN) Timing Switching frequency 3,000 Hz Response time 0.16 ms Connection Connection 1 Function Voltage supply, Signal OUT Type of connection Connector Thread size M8 Material Metal No. of pins 4 -pin Mechanical data Dimension (W x H x L)11.4 mm x 34.2 mm x 18.3 mm Housing material Plastic, PC-ABS Lens cover material Plastic / PMMA Net weight 10 g Type of fastening Via optional mounting device, Through-hole mounting Compatibility of materials ECOLAB Operation and display Operational controls Multiturn potentiometer
SKU - 50137051
₹12,218.00
Customize
Product Full Name :
. Full Product Name
Description :
Operating range limit 0.015 ... 0.55 m Adjustment range 20 ... 550 mm Light source Laser, Red Laser class 2, IEC/EN 60825-1:2007 Light spot size [at sensor distance]1 mm [550 mm] Shift angle Typ. ± 2° Electrical data Protective circuit Overvoltage protection, Polarity reversal protection, Short circuit protected Performance data Supply voltage UB10 ... 30 V, DC, Incl. residual ripple Residual ripple 0 ... 10 %, From UB Open-circuit current 0 ... 20 mA Outputs Number of digital switching outputs 2 Piece(s) Switching output 1 Switching element Transistor, Push-pull Switching principle Light switching (PNP)/dark switching (NPN) Switching output 2 Switching element Transistor, Push-pull Switching principle Dark switching (PNP)/light switching (NPN) Timing Switching frequency 3,000 Hz Response time 0.16 ms Connection Connection 1 Function Voltage supply, Signal OUT Type of connection Connector Thread size M8 Material Metal No. of pins 4 -pin Mechanical data Dimension (W x H x L)11.4 mm x 34.2 mm x 18.3 mm Housing material Plastic, PC-ABS Lens cover material Plastic / PMMA Net weight 10 g Type of fastening Via optional mounting device, Through-hole mounting Compatibility of materials ECOLAB Operation and display Operational controls Multiturn potentiometer In stock:
