Smidnya

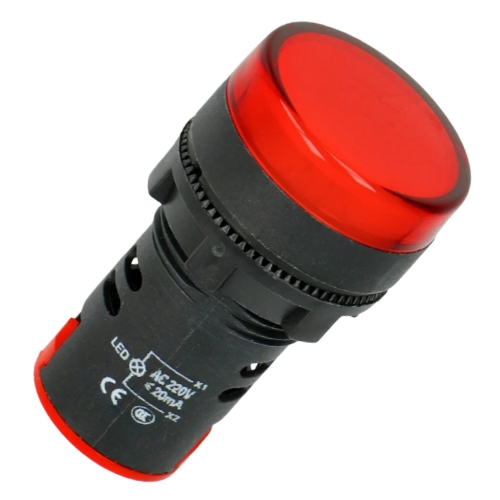

Protected Led indicator Red,380V AC
Non-returnable
SKU - CPIL-22DS-R
₹84.00
Customize
Product Full Name :
Parameter: Specification 1.Model: AD22-22DS 2.Color: Green 3.Mounting Hole Diameter: 22 mm (standard panel cutout) 4.Rated Voltage Options: AC/DC 6V, 12V, 24V, 36V, 48V, 110V, 220V, 380V 5.Working Voltage Tolerance: ±20% of rated voltage 6.Rated Current:less than or equal to 20 mA 7.Power Consumption: less than or equl to 0.5W 8.Light Source: LED (High-brightness) 9.Insulation Resistance: greater than or equal to 2 MΩ 10.Dielectric Strength: AC 2.5kV for 1 minute 11.Service Life of LED: greater than or equal to 30,000 hours 12.Ambient Operating Temperature –25°C to +55°C 13.Relative Humidity:less than or equal to 98% RH (non-condensing) 14.Vibration Resistance: 2–80Hz, 0.7g 15.Ingress Protection: IP65 (front panel side) 16.Material: Flame-retardant polycarbonate body and lens 17.Installation Method: Panel mounting with screw-type terminals Full Product Name
Description :
✅ High-visibility green LED for clear operational status indication ✅ Low power consumption and long LED life — greater than 30,000 hours ✅ Wide voltage range — suitable for both AC and DC applications ✅ Compact and standard design — fits 22 mm hole panels ✅ Screw terminal — easy and secure wiring ✅ IP65 protection — suitable for dusty or moist environments ✅ Industrial grade build — shock and vibration resistant In stock:
93
