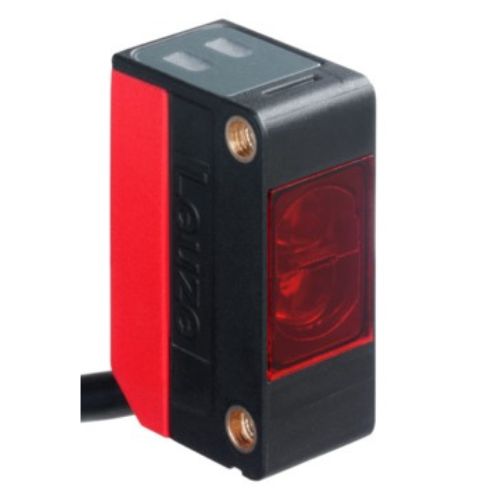

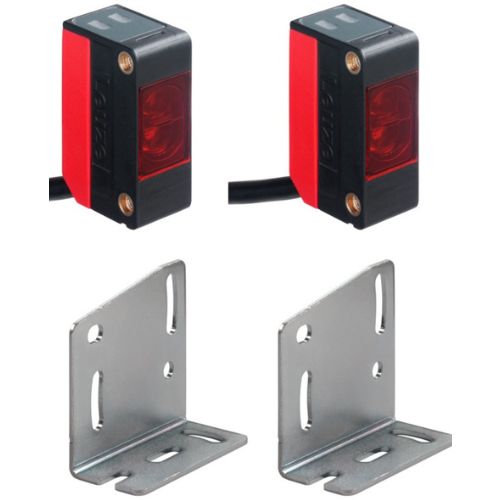

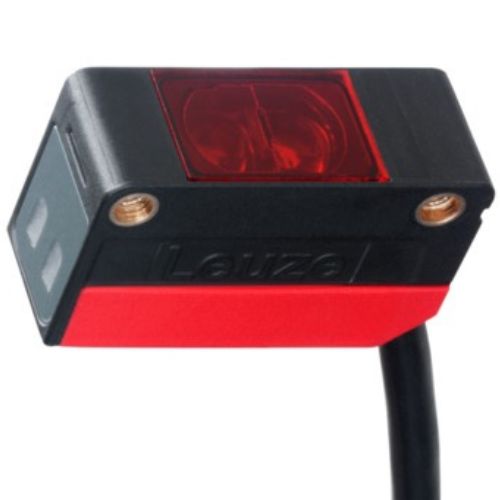

Leuze SET LS5/9D + LE5/4P + 2 BT205M - Through beam photoelectric sensor transmitter set
Set (transmitter and receiver) Operating range 0 ... 10 m Operating range limit 0 ... 15 m Light source Supply voltage UB 10 ... 30 V, DC, Incl. residual ripple Outputs Number of digital switching outputs 2 Piece(s) Switching output 1 Switching element Transistor, PNP Switching principle Light switching Switching output 2 Switching element Transistor, PNP Switching principle Dark switching Timing Switching frequency 500 Hz Response time 1 ms Connection Connection 1 Function Voltage supply, Signal IN, Transmitter device connection Type of connection Cable Cable length 2,000 mm Number of conductors 4 -wire Connection 2 Function Receiver device connection, Signal OUT, Voltage supply Type of connection Cable Cable length 2,000 mm Number of conductors 4 -wire
SKU - 50125986
₹3,000.00
Customize
Product Full Name :

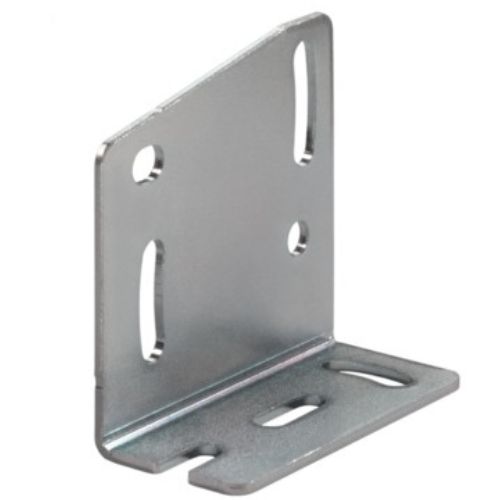

1.Supply Voltage: 10 to 30 V DC (with residual ripple up to 15%) 2.Current Consumption: 0 to 15 mA 3.Switching Outputs: 2 PNP transistor outputs Output 1: Light switching (active when light is received) Output 2: Dark switching (active when light is interrupted) 4.Max Switching Current: 100 mA 5.Protection Features: Short-circuit protection and polarity reversal protection 6.General Information: Device Type: Transmitter and receiver set Operating Principle: Throughbeam (one-way) Series: 5 Included Accessories: 4x M3 x 8 screws, 2x BT205M brackets 7. Optical Characteristics Operating Range: 0 to 10 meters (guaranteed), up to 15 meters (typical) Light Source: Red LED (620 nm wavelength) Emission Type: Pulsed light LED Classification: Exempt group (per EN 62471) 8.Connectivity Cable Length: 2 meters Conductors: 4-wire configuration Cable Sheathing: PUR (polyurethane) Wire Cross-Section: 0.2 mm² 9.Mechanical Properties Dimensions (W x H x D): 14 mm x 32.5 mm x 20.2 mm Housing Material: ABS plastic Optical Cover Material: Plastic Weight: Approximately 178 grams (entire set) Full Product Name
Description :
Set (transmitter and receiver) Operating range 0 ... 10 m Operating range limit 0 ... 15 m Light source Supply voltage UB 10 ... 30 V, DC, Incl. residual ripple Outputs Number of digital switching outputs 2 Piece(s) Switching output 1 Switching element Transistor, PNP Switching principle Light switching Switching output 2 Switching element Transistor, PNP Switching principle Dark switching Timing Switching frequency 500 Hz Response time 1 ms Connection Connection 1 Function Voltage supply, Signal IN, Transmitter device connection Type of connection Cable Cable length 2,000 mm Number of conductors 4 -wire Connection 2 Function Receiver device connection, Signal OUT, Voltage supply Type of connection Cable Cable length 2,000 mm Number of conductors 4 -wire In stock:
