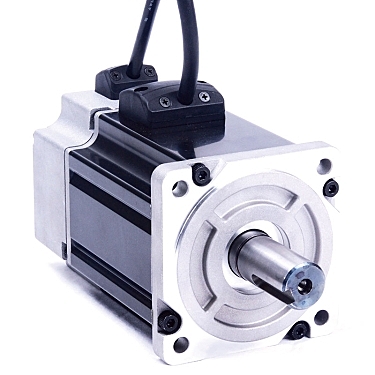

Moons-SM0802AE4-KCD-NNV 550 W SERVO MOTOR
Price:
₹12,770.00
Moons-SM0802AE4-KCD-NNV 550 W SERVO MOTOR
Customize
1. High Efficiency & Performance – Delivers 550W of power with precise motion control. 2. Compact Design – 80mm frame size for space-saving installation. 3. High Torque Density – Provides 1.8 Nm rated torque for demanding applications. 4. High Speed Operation – Rated speed of 3,000 RPM for fast response. 5. Advanced Encoder – Equipped with a 2500-line incremental encoder for accurate position feedback. 6. IP65 Protection – Dustproof and water-resistant (excluding shaft and cable section). 7. Robust Build Quality – Designed for industrial environments with durable materials. 8. Smooth & Quiet Operation – Optimized for low vibration and noise. 9. Safety Features – Supports Safe Torque Off (STO) function for enhanced safety.
1. Frame Size- 80 mm 2. Rated Power- 550 W 3. Rated Torque- 1.8 Nm 4. Rated Speed- 3,000 RPM 5. Rated Voltage- 80 VDC 6. Rated Current- 10 A 7. Rotor Inertia- 630 g·cm² 8. Encoder- 2500-line incremental encoder 9. Brake- Not equipped with a holding brake 10. Insulation Class- B 11. Protection Class- IP65 (excluding shaft and cable section)
