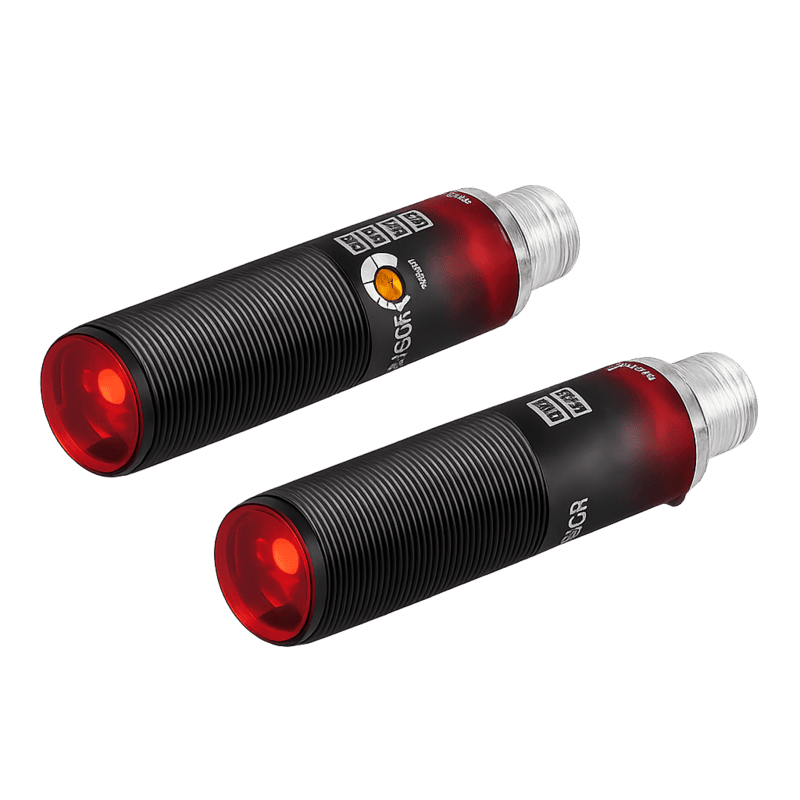

Autonics BRQ Side-Sensing Through-Beam Photoelectric Sensors
- Through-beam side-sensing photoelectric sensor family with long-range 10 m and 20 m options
- Available as dedicated emitter and receiver variants with NPN or PNP receiver models
- Cable type and M12 4-pin connector type versions for flexible installation
- Fast ≤ 1 ms response time with red 660 nm light source and sensitivity adjustment
- IP67 M18 cylindrical design for reliable industrial object detection and conveyor automation
Product Details
Key Features
Autonics BRQ Side-Sensing Through-Beam Photoelectric Sensors
Autonics BRQ through-beam side-sensing photoelectric sensors are M18 cylindrical industrial sensors designed for opposed emitter/receiver installation in machine automation, conveyor systems, packaging equipment, and non-contact object detection applications. This BRQ group is dedicated to through-beam sensing, the longest-range sensing method within the BRQ family.
The series is available in 10 m and 20 m sensing range options, with dedicated emitter units and matching receiver units. Receiver variants are available in NPN open collector and PNP open collector output versions, while both cable type and M12 4-pin connector type models are offered for installation flexibility.
Through-beam sensing is ideal for stable object interruption detection over long distances where separate mounting of emitter and receiver is possible. It is best suited for opaque targets and applications requiring higher sensing margin than reflective sensing methods.
Specifications
- Sensing TypeThrough-beam
- Supply Voltage10–30 VDC
- Light SourceRed
- Protection RatingIP67
- Mounting / Body SizeCylindrical M18
