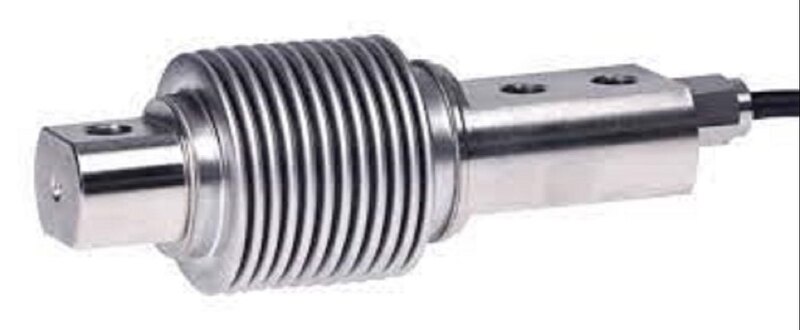

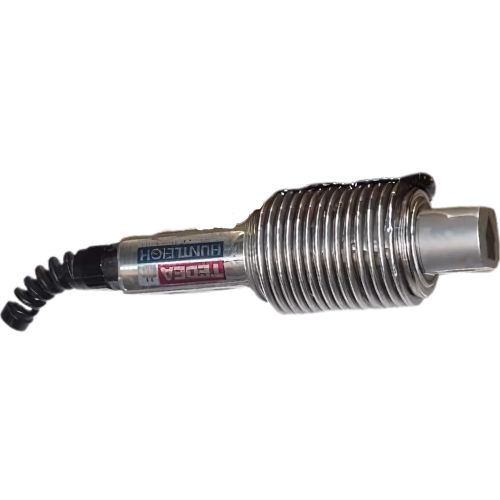

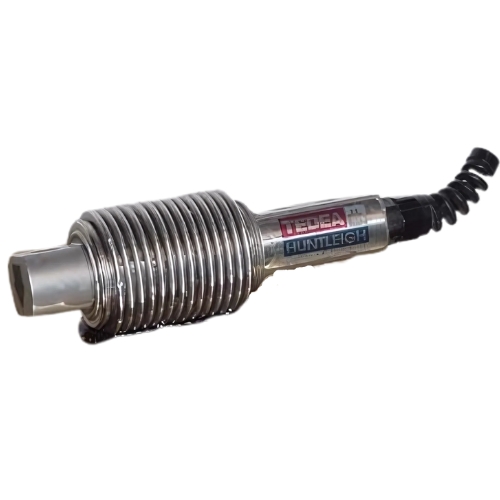

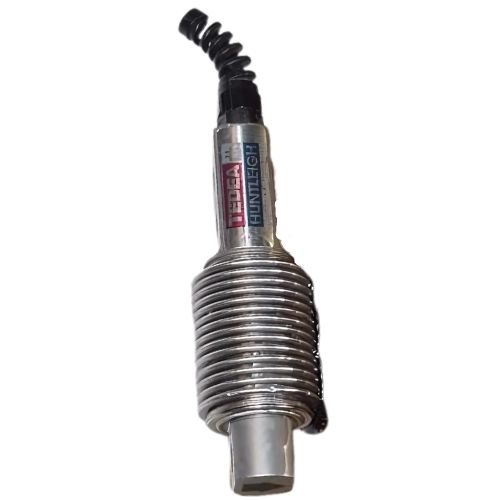

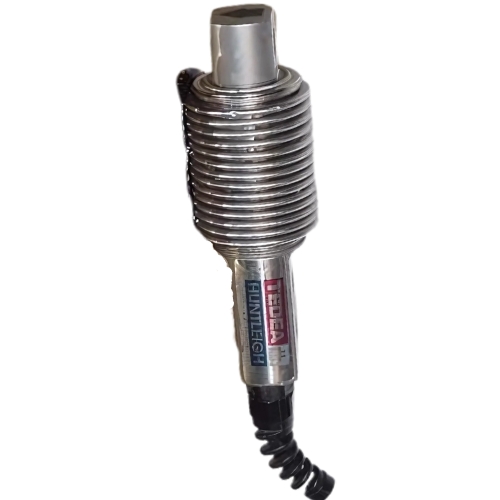

Bending beam load cell 20 Kgs.
Non-returnable
₹7,000.00
Features / Functions
1. High Accuracy – Low non-linearity, hysteresis, and creep ensure precise measurements. 2. Stainless Steel Construction – Provides durability and resistance to corrosion. 3. Easy Installation – Can be mounted with standard fixtures for quick setup. 4. High Output Sensitivity – Usually 2 mV/V, allowing for reliable signal processing. 5. Overload Protection – Designed to handle slight overloads without damage. 6. Compatible with Standard Weighing Electronics. 7. Temperature Compensation – Ensures stable performance across a wide temperature range. Specifications
1. Capacity: 20 kg 2. Type: Bending Beam Load Cell 3. Material: Stainless Steel 4. Accuracy: High precision with low hysteresis 5. Output Sensitivity: Typically 2mV/V 6. Excitation Voltage: 10V (typical), max 15V 7. Resistance: Input 400–450Ω, Output 350–400Ω 8. Environmental Protection: IP66/IP67 in many models 9. Mounting: Single-point or fixed mounting Choose Quantity
